| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
148 pcs
|
148 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

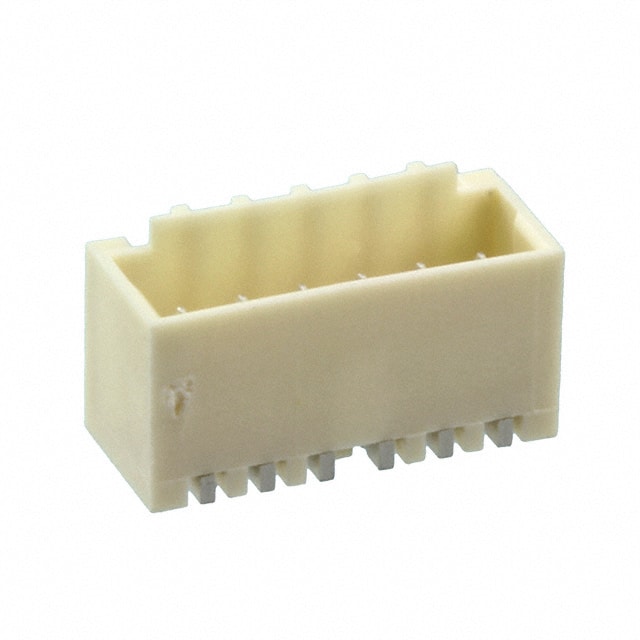

The Molex 0874380643 is a 6-position single row header connector designed for board-to-cable/wire applications. It features male pin contacts with square contact shape, made of brass alloy with tin finish (2.54µm). The header is shrouded with 4 walls for robust mating and uses push-pull fastening.
It has a pitch of 1.5mm, supports 6 positions all loaded, and is surface mounted with right angle orientation. The insulation is glass-filled polyamide (nylon) in beige color, with a flammability rating of UL94 V-0. Operating temperature range is -55°C to 105°C, and voltage rating is 250V.
Termination is via solder. The contact length is 2.70mm and insulation height is 4.45mm. This connector is suitable for applications requiring compact, reliable connections in space-constrained environments.
It is a header with 6 positions (all loaded).
1.5mm (0.059 inches).
250V.
Surface Mount, Right Angle.
-55°C to 105°C.
Yes, it is shrouded with 4 walls.
Tin finish, 2.54µm (100µin).
