| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
984 pcs
|
984 pcs | On Request | 1 | On Request | On Request | 2026-02-13 12:19:00 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Shrouding | |
| Storage Temperature | |
| Style | |
| Tape & Reel | |
| Termination |

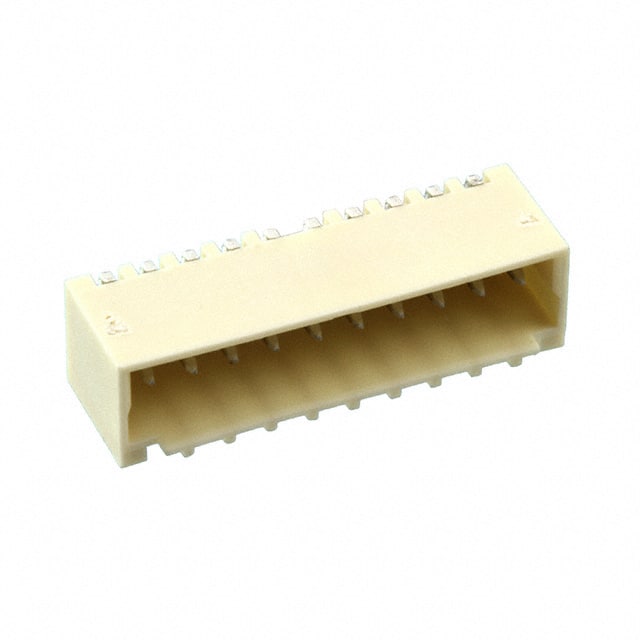

The Molex 0874371043 is a 10-position, single-row header connector with a 1.50mm pitch, designed for board-to-cable/wire applications. It features a shrouded 4-wall housing for pin protection and push-pull fastening for secure mating.
The header is surface mount with solder termination. The insulation is beige polyamide (PA) nylon, rated UL94 V-0 for flammability. The insulation height is 5.05mm. Contacts are made of brass alloy with a square pin shape and a tin finish (100µin thickness).
This component is suitable for compact electronic assemblies requiring reliable wire-to-board interconnections. The MSL rating is 1 (unlimited), and the part is listed as RoHS3 compliant and REACH unaffected.
10 positions.
1.50mm (0.059 inches).
Surface mount.
Push-pull.
Tin with a thickness of 100µin (2.54µm).
Polyamide (PA) Nylon, beige, with a UL94 V-0 flammability rating.
Board to cable/wire.
