| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
900 pcs
|
900 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination |

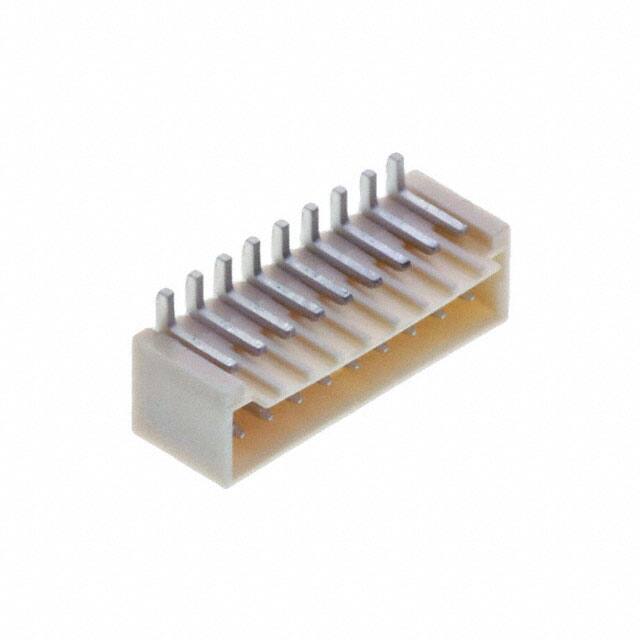

The Molex 0874370973 is a 9-position, single row, surface mount header designed for board-to-cable/wire applications. It features a 1.5mm pitch and a shrouded 4-wall design for robust mating alignment.
The contacts are made of brass alloy with a tin finish (100µin thickness) and are square shaped. The insulator is molded from glass-filled polyamide (nylon) with a UL94 V-0 flammability rating, colored beige. The mounting type is surface mount with solder termination, and the part includes a pick-and-place feature for automated assembly.
This header is suitable for applications requiring a compact, low-profile connector solution. The push-pull fastening type ensures easy mating and unmating. All 9 positions are loaded.
9 positions, all loaded.
1.5mm (0.059 inches).
Surface mount.
Yes, it has a shrouded 4-wall design.
Tin with 100µin thickness.
Glass-filled polyamide (nylon) with UL94 V-0 rating.
Push-pull.
