| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
68 pcs
|
68 pcs | On Request | 1 | On Request | On Request | 1970-01-01 00:35:12 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination |

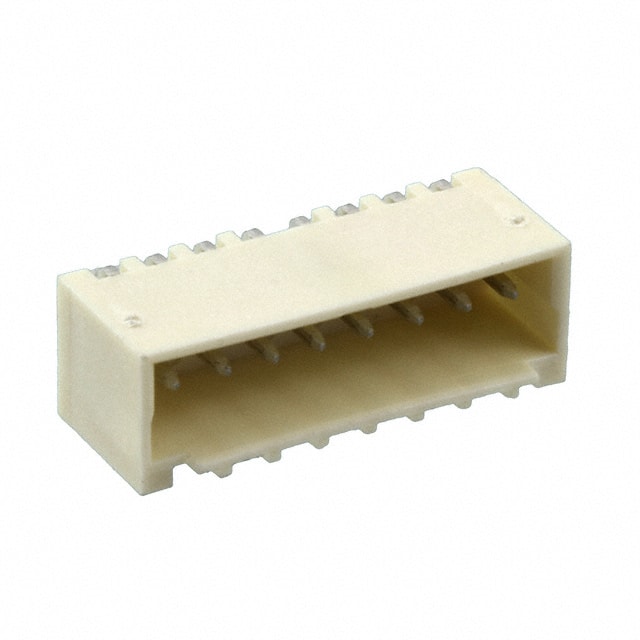

This Molex 0874370843 is a 8-position single row shrouded header connector designed for board-to-cable/wire interconnects. It features a 1.5mm pitch with all positions loaded, providing a compact connection solution.
The connector utilizes surface mount termination with solder connections. The header is shrouded on all four walls and uses a push-pull fastening type. Male pin contacts are made of brass alloy with a tin plating of 100.0µin, and have a square contact shape with a length of 2.70mm.
The insulation body is molded from polyamide (PA) nylon in a beige color with a UL94 V-0 flammability rating. This header is suited for automated assembly processes and space-constrained designs requiring reliable mating.
This header has 8 positions in a single row configuration, all positions loaded.
The contact pitch is 1.50mm.
This connector is surface mount with solder termination.
Yes, the header is shrouded with a 4-wall enclosure and uses a push-pull fastening type.
The contacts are made of brass alloy with a tin finish of 100.0µin (2.54µm).
The insulation material is polyamide (PA) nylon, beige colored, with a UL94 V-0 flammability rating.
