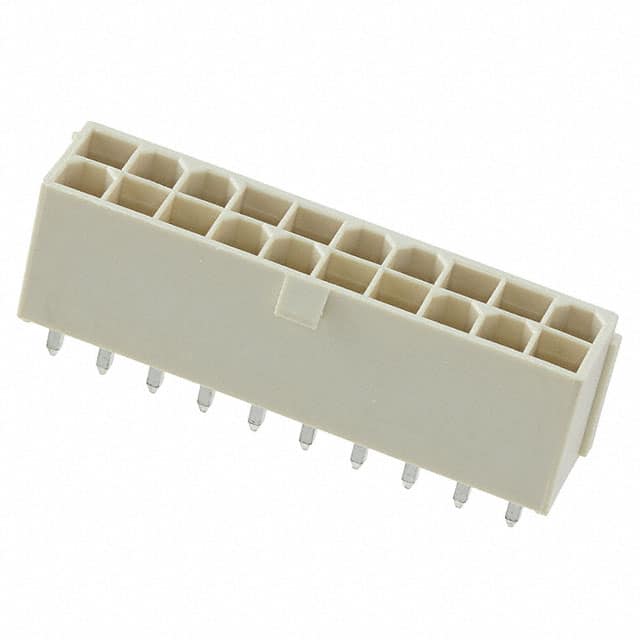

0874272042 Molex 0874272042 is a 20-position, 2-row, 4.2mm pitch shrouded header designed for board-to-cable/wire connections. It features through-hole mounting with solder termination and a locking ramp fastening system.
Mfr Part #:

0874272042

Available from 1 distributors
Mfr Name: Molex
Molex
Molex 0874272042 is a 20-position, 2-row, 4.2mm pitch shrouded header designed for board-to-cable/wire connections. It features through-hole mounting with solder termination and a locking ramp fastening system.
✓ Total Stock: 3,356 pcs
$ Price Range: $2.53 - $4.12

0874272042 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Husky International Electronic ✓
Non-Authorised Inventory information
3,356 pcs
On Request
3356 pcs On Request 1 On Request On Request N/A On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

0874272042 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Fastening Type
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Pitch
Row Spacing
Shrouding
Style
Termination
View Similar Products (0)

0874272042 Description

Short technical summary and product information.

The Molex 0874272042 is a 20-position, 2-row header connector with a 4.20mm pitch and 4.20mm row spacing. It is a shrouded, 4-wall design with a locking ramp fastening system, suitable for board-to-cable/wire applications. The contact type is male pin with square shape, made of brass with a tin finish of 100.0µin (2.54µm). The contact length is 3.30mm. The insulation is made of polyamide (PA46) Nylon 4/6, beige in color, with an insulation height of 12.80mm. The mounting type is through hole with solder termination. The material flammability rating is UL94 V-0. The connector is RoHS3 compliant, MSL 1 unlimited, and REACH unaffected. It is designed for reliable connections in various electronic applications.

0874272042 Quick Information

Product Type: Header Connector
Canonical Name: Molex 0874272042 - 20 Position Header, 4.2mm Pitch, Through Hole, Shrouded
Subcategory: Shrouded Header

0874272042 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

0874272042 Estimated Pricing

Qty Low High
1+ $4.12 $4.12
10+ $3.50 $3.50
200+ $2.83 $2.83
600+ $2.62 $2.62
1,000+ $2.53 $2.53

Estimated market price range - modelled values for guidance only, not live distributor offers.

0874272042 Features

  • 20-position, 2-row, 4.20mm pitch header.
  • Through-hole mounting with solder termination.
  • Shrouded 4-wall design with locking ramp.
  • Tin-plated brass contacts for conductivity.
  • UL94 V-0 rated polyamide insulation.

0874272042 Applications

  • Board-to-cable/wire interconnection applications.
  • Power supply and distribution systems.
  • Automotive and industrial control modules.
  • General purpose wire-to-board connections.

0874272042 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of positions?

20 positions.

What is the pitch?

4.20mm (0.165 inches).

What is the mounting type?

Through hole with solder termination.

What is the contact material and finish?

Brass contacts with a tin finish of 100.0µin (2.54µm).

What is the insulation material?

Polyamide (PA46) Nylon 4/6, beige, UL94 V-0 rated.

Is the connector shrouded?

Yes, it has a shrouded 4-wall design with a locking ramp fastening system.

What is the intended application style?

Board to cable/wire connections.
