| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Type | |
| Lead Style | |
| Mating Cycles | |
| Maximum Working Height | |
| Minimum Working Height | |
| Mounting Type | |
| Operating Force | |
| Pad Layout Dimension | |
| Plunger Size | |
| Recommended Working Height |

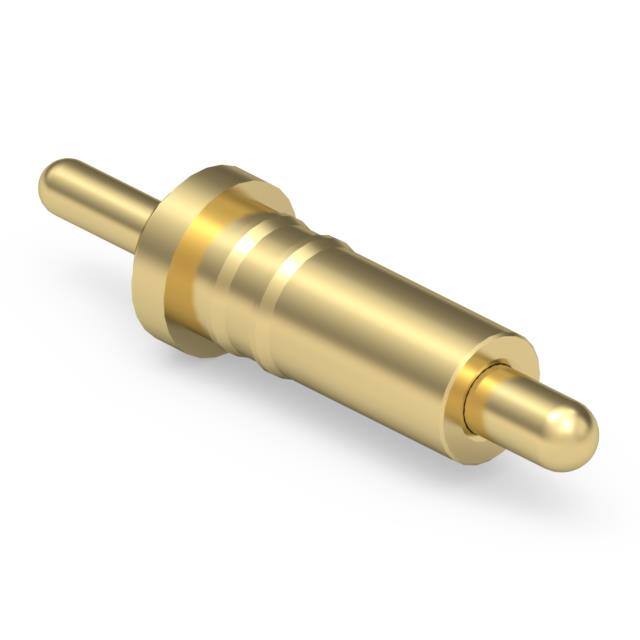

The 0858-0-15-20-82-14-11-0 is a spring-loaded contact (pogo pin) manufactured by Mill-Max Manufacturing. It features a sleeve and plunger design with a plunger diameter of 0.050" (1.27mm). The contact is constructed from brass alloy with a gold finish of 20.0µin (0.51µm) thickness.
This through-hole mount contact has a recommended working height of 0.333" (8.46mm) with a minimum of 0.288" (7.32mm) and maximum of 0.378" (9.60mm). The operating force is specified at 120gf, and the contact is rated for 1,000,000 mating cycles, indicating high durability for repeated use.
The pad layout is circular with a 0.125" (3.18mm) through-hole diameter. This spring-loaded contact is suitable for applications requiring reliable, temporary electrical connections in test fixtures, battery contacts, and interconnect systems.
The operating force is 120gf.
It is rated for 1,000,000 mating cycles.
Through hole mounting with a circular pad layout of 0.125" (3.18mm) diameter.
The plunger diameter is 0.050" (1.27mm).
Minimum working height is 0.288" (7.32mm), recommended is 0.333" (8.46mm), and maximum is 0.378" (9.60mm).
The contact is made of brass alloy with a gold finish of 20.0µin (0.51µm) thickness.
