| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
288 pcs
|
288 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Features | |
| LED Color | |
| Lead Style | |
| Mounting Type | |
| Number of Ports | |
| Number of Positions | |
| Number of Rows | |
| Orientation | |
| Ratings | |
| Shielding | |
| Tab Direction | |
| Termination | |
| Termination Style |

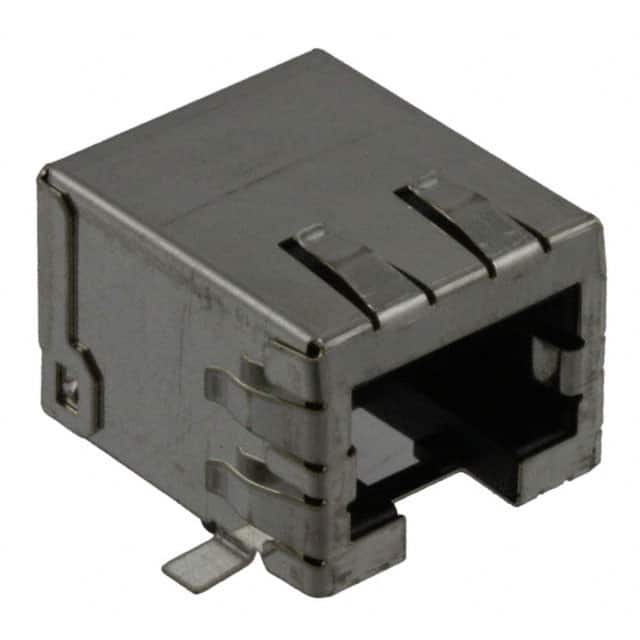

The Molex 0855435001 is a single-port 8P8C (RJ45, Ethernet) modular connector jack designed for surface mount applications. It features a right angle (90°) orientation with a down tab direction, making it suitable for compact PCB layouts where space is constrained.
The connector is fully shielded with an EMI finger to reduce electromagnetic interference, and includes board guide and solder retention features for reliable assembly. Contacts are made of phosphor bronze with a gold finish, ensuring good conductivity and corrosion resistance. The jack is rated for Cat5e performance, supporting standard Ethernet applications.
Termination is via solder, and the component is RoHS3 and REACH compliant (unverified). Moisture sensitivity level is MSL 1 (unlimited floor life). This part does not include an LED indicator.
This is a jack connector with 8 positions and 8 contacts (8p8c), commonly used for RJ45 Ethernet.
It is surface mount with a 90° right angle orientation and a down tab direction.
Yes, it is shielded and includes an EMI finger for electromagnetic interference protection.
Contacts are made of phosphor bronze with a gold finish.
It is rated Cat5e, suitable for standard Ethernet applications.
