| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
581 pcs
|
581 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Features | |
| LED Color | |
| Lead Style | |
| Mounting Type | |
| Number of Ports | |
| Number of Positions | |
| Number of Rows | |
| Orientation | |
| Ratings | |
| Shielding | |
| Tab Direction | |
| Termination | |
| Termination Style |

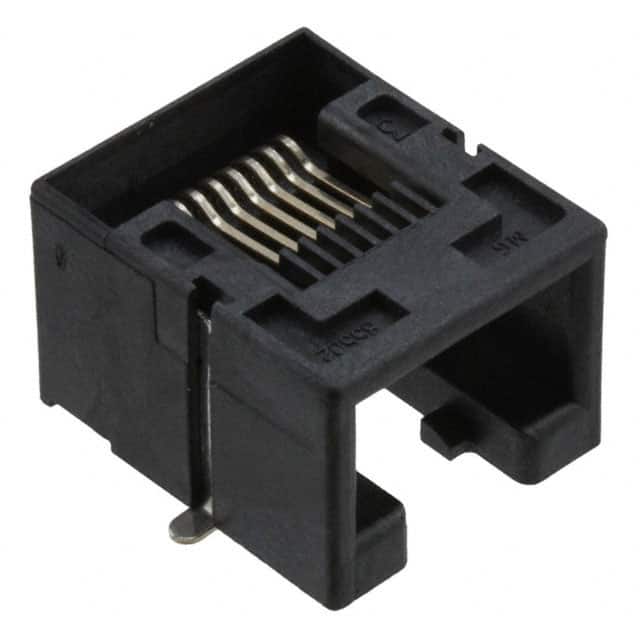

The Molex 0855025008 is a modular jack connector designed for RJ45 Ethernet applications. It features 8 positions and 8 contacts (8p8c) in a single port, single row configuration. The connector is unshielded and has a right angle (90°) orientation, making it suitable for space-constrained designs where side entry is required.
This jack is surface mount with solder termination, and includes a solder retention feature for reliable mechanical attachment during reflow soldering. The contacts are made of copper alloy with a gold finish, ensuring good conductivity and corrosion resistance. The tab direction is down, which is standard for most RJ45 applications.
Rated as Category 3 (Cat3), this connector is suitable for basic networking and telecommunication applications. It does not contain an LED indicator. Compliance includes RoHS, REACH, and MSL 1 (unlimited floor life), making it suitable for lead-free assembly processes.
8p8c (RJ45, Ethernet)
Surface mount
90° Angle (Right)
No, it is unshielded.
Solder
Cat3
Solder retention
