| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
46 pcs
|
46 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Features | |
| Frequency | |
| Housing Color | |
| Impedance | |
| Mounting Type | |
| Number of Ports | |
| Shield Termination | |
| Termination Style |

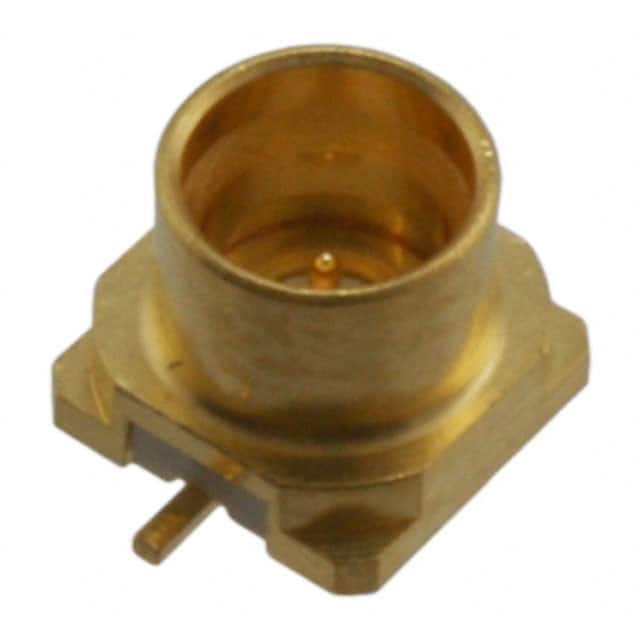

The Molex 0853050232 is an SMP coaxial connector assembly designed for high-frequency RF applications. It is a plug with a male pin center contact, offering a 50 Ohm impedance and supporting frequencies up to 40 GHz.
This connector features a snap-on fastening mechanism for quick and secure mating. It is designed for surface mount installation with solder termination for both the center contact and shield. The housing is gold plated, and the center contact is made of brass. A limited detent feature is included for controlled engagement.
This component is suitable for use in RF modules, test equipment, and other high-speed signal interconnect systems where a compact, blind-mate interface is required.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.20 | $4.20 |
| 10+ | $3.57 | $3.57 |
| 25+ | $3.34 | $3.34 |
| 50+ | $3.18 | $3.18 |
| 100+ | $3.03 | $3.03 |
| 250+ | $2.84 | $2.84 |
| 500+ | $2.78 | $2.78 |
| 1,000+ | $2.90 | $2.90 |
| 2,000+ | $2.76 | $2.76 |
| 3,000+ | $2.69 | $2.69 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The impedance is 50 Ohms.
The maximum frequency is 40 GHz.
It uses surface mount mounting.
The fastening type is snap-on.
The connector style is SMP.
