| Category | |
| Manufacturer Name | |
| Accessory Type | |
| Contact Resistance | |
| For Use With | |
| Material | |
| Mounting Type |

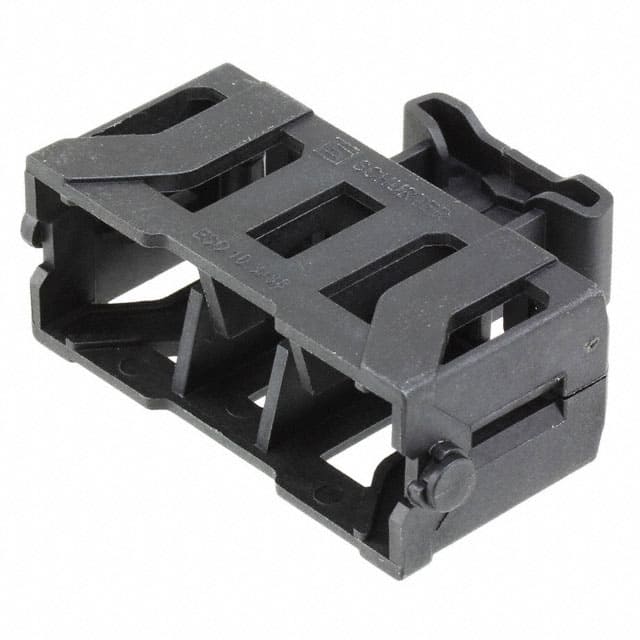

The Schurter Inc. 0853.1251, also known as the ESO 10.3x38, is a versatile fuse inserter, extractor, and cover in a single component. Designed for 10.3x38 mm fuses, this compact and cost-effective accessory provides touch-safe operation according to IP20 standards.
Constructed from black thermoplastic material rated UL 94V-0, the 0853.1251 ensures durability and safety. It features a plug-in assembly mounting type and operates within an admissible ambient temperature range of -40 °C to 85 °C. The unit weight is 9.2 g.
This fuse holder cover is suitable for various DC applications, including photovoltaic systems, inverters, and battery charge controllers. It is designed for use with CSO clips and offers optional terminal marking. The product complies with UL 4248-1 and CSA C22.2 no. 4248.1 standards and is suitable for applications compliant with IEC/UL 62368-1.
The Schurter 0853.1251 cover is designed for 10.3 x 38 mm fuses.
The Schurter 0853.1251 fuse holder cover has a degree of protection of IP20.
The admissible ambient temperature for the Schurter 0853.1251 is -40 °C to 85 °C.
The Schurter 0853.1251 fuse holder cover is made from black thermoplastic rated UL 94V-0.
The Schurter 0853.1251 is suitable for photovoltaic applications, inverters, battery charge controllers, string fuses, and other DC applications.
Yes, the Schurter 0853.1251 is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) for the Schurter 0853.1251 is 1 Unlimited.
