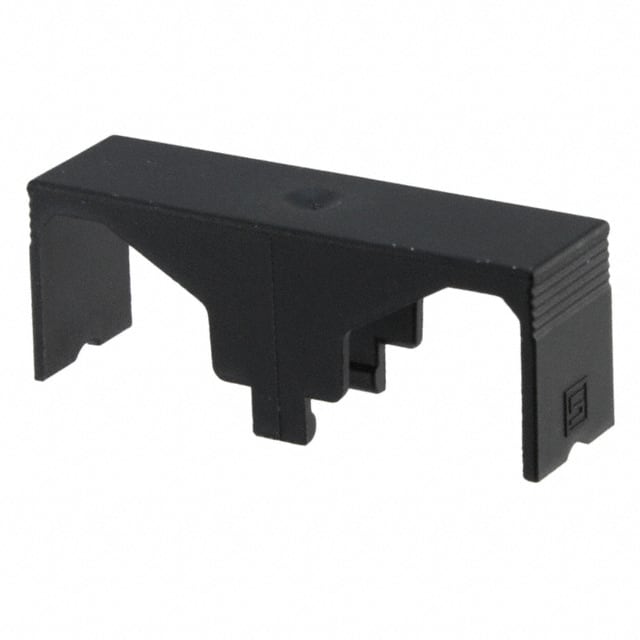

The Schurter 0853.0917 is an open-design fuseholder cover specifically for the OGD and OGD-SMD series fuseholders. It is designed to accept both 5x20 mm and 6.3x32 mm fuse-links, providing versatility for various circuit protection needs.
This cover features PCB mounting and SMT (Surface Mount Technology) terminals, facilitating automated assembly processes. It is rated for 250/500 VAC according to VDE standards and 600 V according to UL/CSA standards, with a rated current of 10 A (VDE) and 16 A (UL/CSA). The fuseholder assembly offers a degree of protection of IP20 when the cover is in place and is suitable for appliances with protection class I.
Constructed from black thermoplastic material compliant with UL 94V-0 for both the socket and cover, and featuring tin-plated copper alloy terminals, this fuseholder cover is built for durability. It operates within an admissible ambient temperature range of -40 °C to 85 °C and meets the climatic category 40/085/21.
Applications for this fuseholder cover include equipment with three-phase supply (400 VAC) and other industrial environments requiring reliable fuse protection. The SMT solderability is designed for reflow (lead-free) processes, adhering to JEDEC J-STD-020D standards.
The fuseholder cover supports both 5x20 mm and 6.3x32 mm fuse-links.
The mounting type is PCB.
It is rated for 250/500 VAC according to VDE and 600 V according to UL/CSA.
The rated current is 10 A for VDE and 16 A for UL/CSA.
The admissible ambient temperature range is -40 °C to 85 °C.
The degree of protection is IP20 when the cover is in place.
Yes, it is RoHS3 Compliant.
