| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,800 pcs
|
2800 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Connector Type | |
| Contact Finish | |
| Features | |
| Height Above Board | |
| LED Color | |
| Lead Style | |
| Mounting Type | |
| Number of Cores per Jack | |
| Number of Ports | |
| Number of Rows | |
| Orientation | |
| Shielding | |
| Tab Direction | |
| Termination | |
| Termination Style |

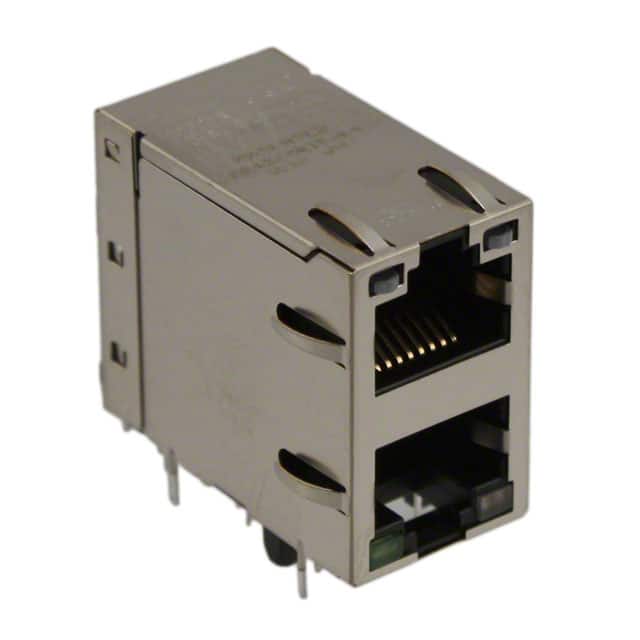

The Bel Fuse 0845-2R1T-E4 is a 2-port RJ45 modular connector jack with integrated magnetics, designed for through-hole mounting on a PCB. This connector features a 90° right-angle orientation for horizontal mating, with solder termination. The shielding includes EMI fingers for enhanced electromagnetic interference protection. Each port has 12 cores and supports 10/100/1000 Base-T Ethernet with AutoMDIX capability. The connector includes green and yellow/green LEDs for status indication. It has a board guide feature and gold-plated contacts for reliable connectivity. With a height above board of 1.080 inches, it is suitable for applications requiring compact Ethernet connectivity.
It has 2 ports.
Through-hole mounting.
90° angle (right).
Yes, shielded with EMI finger contacts.
10/100/1000 Base-T and AutoMDIX.
Green - Yellow, Green.
1.080 inches (27.43 mm).
