| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
51 pcs
|
51 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination |

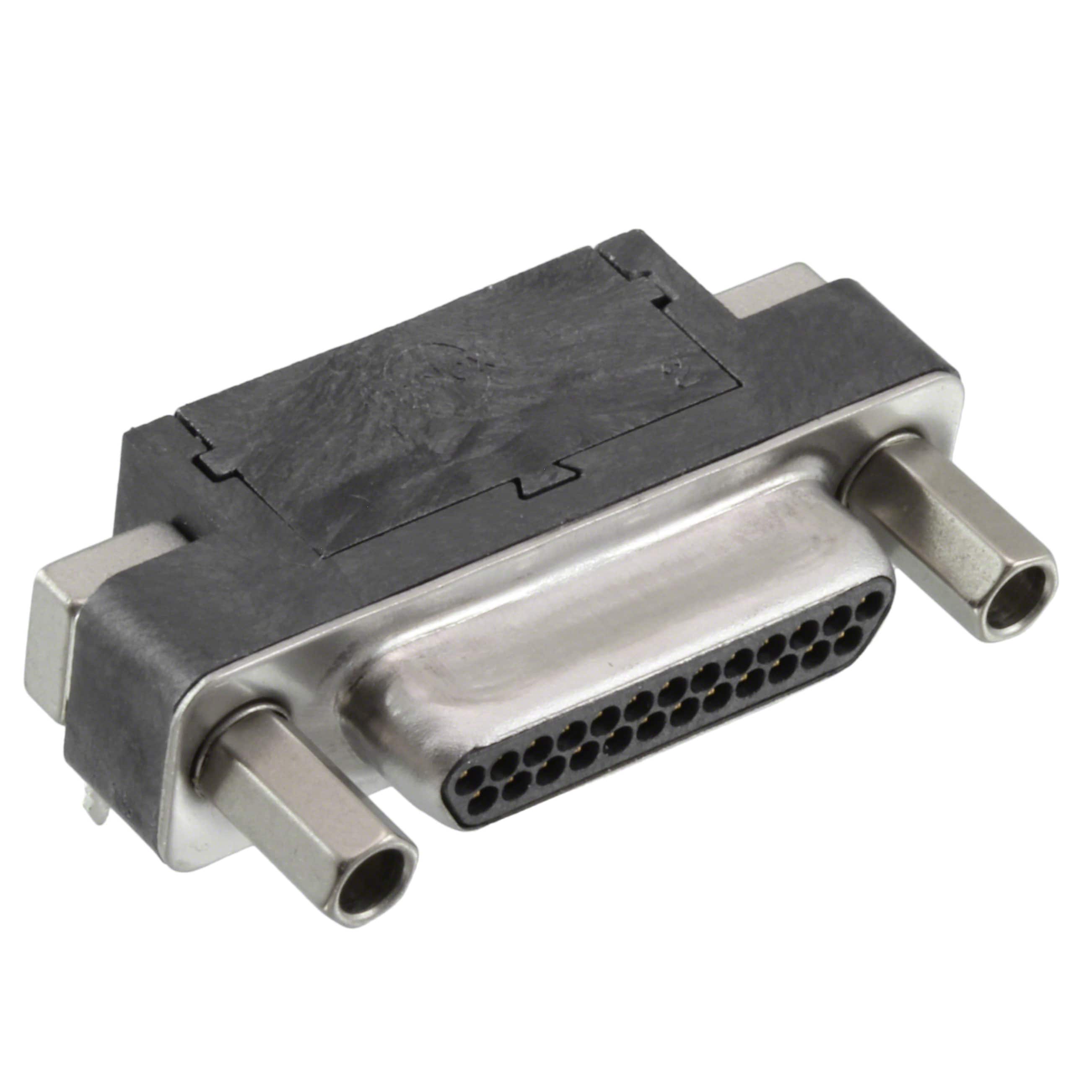

This Molex Micro-D plug connector (part number 0836149012) is a 25-position, 2-row D-Type connector with a 0.050 inch pitch. It features a right angle through-hole mounting style with solder termination, suitable for panel mount applications. The connector includes board locks and is shielded for EMI protection. Contacts are gold-plated with a thickness of 15 microinches (0.38µm), and the shell is made of nickel-plated steel. The flange has female screwlocks (2-56) on the mating side. The backset spacing is 0.267 inches (6.78mm). The insulator material has a UL94 V-0 flammability rating. This connector is rated for 1A per contact and is designed for signal applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $26.57 | $26.57 |
| 17+ | $21.75 | $21.75 |
| 34+ | $20.71 | $20.71 |
| 51+ | $20.13 | $20.13 |
| 102+ | $19.17 | $19.17 |
| 255+ | $17.97 | $17.97 |
| 510+ | $17.11 | $17.11 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
25 positions.
0.050 inch (1.27mm) pitch.
1A per contact.
Panel mount, through hole, right angle.
Gold plating, 15 microinches (0.38µm) thick.
Steel, nickel plated.
UL94 V-0.
