| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
160 pcs
|
160 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Data Rate | |
| Features | |
| Height Above Board | |
| LED Color | |
| Lead Style | |
| Mounting Type | |
| Number of Cores per Jack | |
| Number of Ports | |
| Number of Rows | |
| Operating Temperature | |
| Orientation | |
| PoE Standard | |
| Shielding | |
| Tab Direction | |
| Termination | |
| Termination Style |

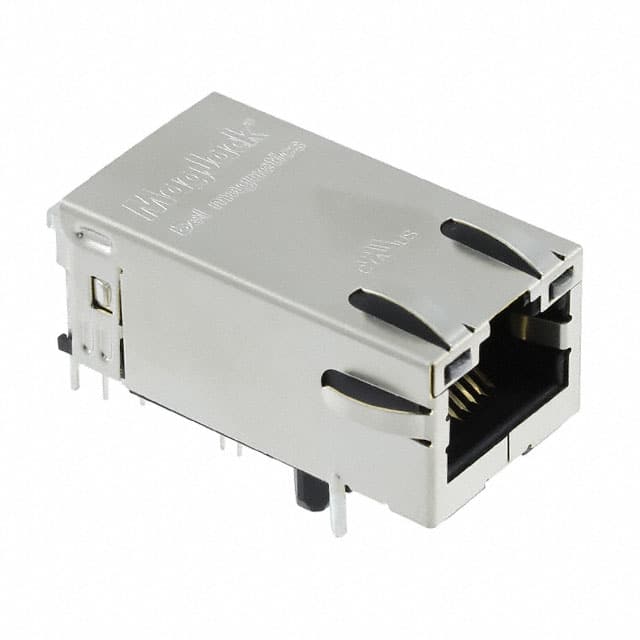

The Bel Fuse 0826-1X1T-GJ-F is a modular connector jack designed for 10/100 Base-T Ethernet applications. It integrates magnetics and supports Power over Ethernet Plus (PoE+) per IEEE 802.3at. The connector is a single-port RJ45 with a right-angle through-hole mounting orientation, making it suitable for compact PCB designs.
Shielding is provided via an EMI finger, reducing electromagnetic interference. The jack includes dual LEDs (Green and Orange-Yellow) for link/activity indication. The contact material is copper alloy with gold finish, ensuring reliable connectivity over a wide operating temperature range of -40°C to 85°C.
Mechanical features include a board guide for easy alignment during assembly. The connector has a height above board of 13.61mm and uses solder termination. With 4 cores per jack, it is intended for 10/100 Base-T applications rather than Gigabit Ethernet.
The connector features through-hole mounting with a right-angle orientation.
Yes, it is shielded with an EMI finger.
The jack includes Green and Orange-Yellow LEDs.
The operating temperature range is -40°C to 85°C.
Yes, it supports Power over Ethernet Plus (PoE+) per IEEE 802.3at.
The termination style is solder.
RoHS compliance is listed as RoHS3 Compliant but is unverified and flagged as low confidence.
