| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,857 pcs
|
1857 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Features | |
| Height Above Board | |
| LED Color | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Cores per Jack | |
| Number of Ports | |
| Number of Rows | |
| Operating Temperature | |
| Orientation | |
| Shielding | |
| Storage Temperature | |
| Tab Direction | |
| Tape & Reel | |
| Termination | |
| Termination Style |

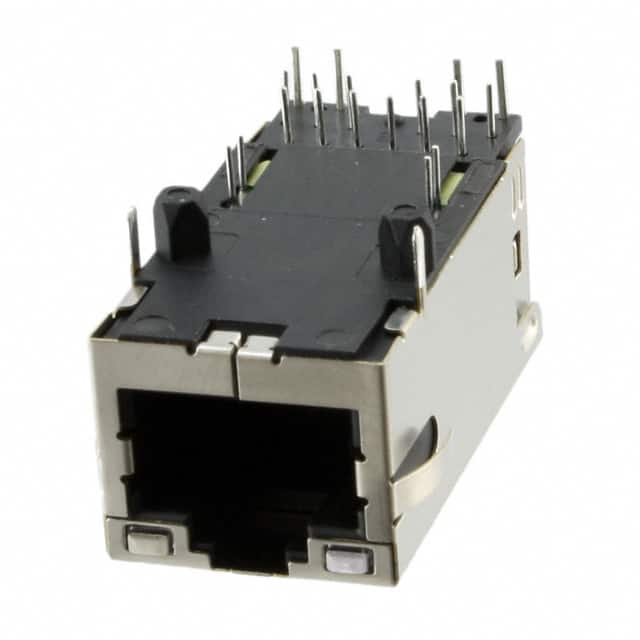

The Bel Fuse 0826-1X1T-GH-F is a single-port, 1000BASE-T Ethernet connector designed for PCB mounting. This MagJack ICM features Power over Ethernet Plus (PoE+) capability, supporting up to 30W.
Constructed with a Copper Alloy contact material and a Gold contact finish, this shielded connector includes EMI finger shielding for enhanced signal integrity. It offers a 90° angle orientation and a height of 13.61mm above the board. The connector is designed for through-hole termination and features a tab-up port configuration.
Operating within a temperature range of -40°C to 85°C, the 0826-1X1T-GH-F is suitable for various industrial and networking applications. It includes integrated LEDs with Green and Orange/Yellow indicators for status monitoring. The part also features board guides for secure mounting.
This connector is compliant with RoHS standards and has an MSL rating of 1. It is designed for applications requiring reliable high-speed data transmission and power delivery over Ethernet.
The connector supports 1000BASE-T speed.
Yes, it supports Power over Ethernet Plus (PoE+).
It uses Through Hole mounting.
The contact finish is Gold.
The operating temperature range is -40°C to 85°C.
The height above the board is 13.61mm.
Yes, it is shielded and includes an EMI finger.
