| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
120 pcs
|
120 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Features | |
| Height Above Board | |
| LED Color | |
| Lead Style | |
| Mounting Type | |
| Number of Cores per Jack | |
| Number of Ports | |
| Number of Rows | |
| Operating Temperature | |
| Orientation | |
| Shielding | |
| Tab Direction | |
| Termination |

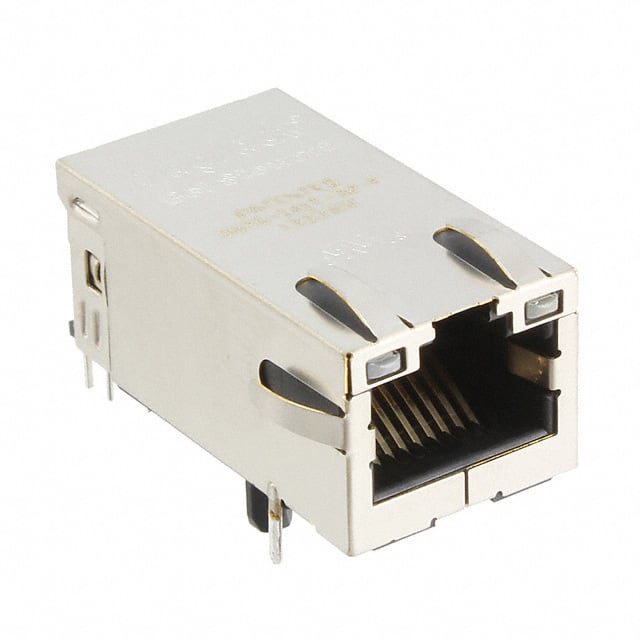

The Bel Fuse 0826-1X1T-32-F is a single-port RJ45 modular connector jack with integrated magnetics, designed for 10/100/1000 Base-T Ethernet applications with AutoMDIX support. It features a through hole mounting style with solder termination and a 90° right angle orientation with the tab facing up.
This shielded connector includes an EMI finger for enhanced electromagnetic interference protection. It is equipped with green and orange-yellow LED indicators for link/activity status. The contact pins are made of copper alloy with gold finish, ensuring reliable electrical connections over repeated mating cycles.
The connector operates over a wide temperature range of -40°C to 85°C and has a board guide feature for accurate alignment during assembly. With a height above board of 13.61 mm (0.536 inches), it is suitable for compact PCB layouts requiring integrated magnetics.
It is a 1-port RJ45 modular connector jack with integrated magnetics.
It supports 10/100/1000 Base-T and AutoMDIX.
Through hole mounting with solder termination and 90° right angle orientation.
Yes, it is shielded and includes an EMI finger.
Green and orange-yellow LEDs are included.
-40°C to 85°C.
Gold finish on copper alloy contacts.
