| Category | |
| Manufacturer Name | |
| Applications | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Features | |
| Height Above Board | |
| LED Color | |
| Lead Style | |
| Mounting Type | |
| Number of Cores per Jack | |
| Number of Ports | |
| Number of Rows | |
| Operating Temperature | |
| Orientation | |
| Shielding | |
| Tab Direction | |
| Tape & Reel | |
| Termination | |
| Termination Style |

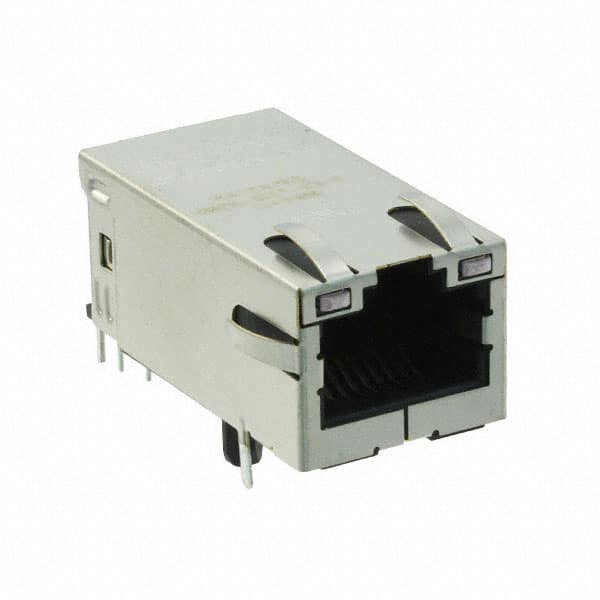

The Bel Fuse 0826-1C1T-23-F is a single-port RJ45 connector designed for integration into printed circuit boards. It offers a shielded design with EMI finger for enhanced signal integrity and protection against electromagnetic interference.
This connector supports 10/100/1000 Base-T Ethernet standards and features AutoMDIX. The contact finish is gold over a copper alloy contact material, ensuring reliable conductivity. The mounting type is through hole with a 90° angle (right) orientation and the tab direction is up.
Key mechanical specifications include a height above board of 13.61mm and a solder termination style. The operating temperature range is from 0°C to 70°C. This component also includes a board guide for secure placement during assembly.
The connector is equipped with LEDs for status indication, featuring Green and Yellow colors. It has 12 cores per jack, suitable for robust network connections.
The Bel Fuse 0826-1C1T-23-F is an RJ45 connector.
This connector is designed for through-hole mounting.
The connector has a 90° angle (right) orientation.
It supports 10/100/1000 Base-T and AutoMDIX.
The contact finish is Gold.
The operating temperature range is 0°C to 70°C.
