| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Features | |
| Halogen Free | |
| Height Above Board | |
| LED Color | |
| Lead Style | |
| Mounting Type | |
| Number of Cores per Jack | |
| Number of Ports | |
| Number of Rows | |
| Operating Temperature | |
| Orientation | |
| SVHC Present | |
| Shielding | |
| Tab Direction | |
| Termination |

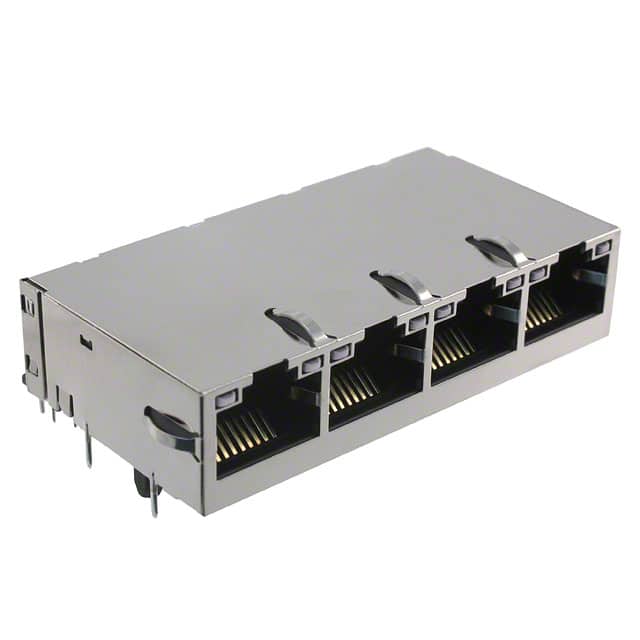

The 0826-1A4T-23-F is a 4-port RJ45 modular connector jack with integrated magnetics manufactured by Bel Fuse. Designed for through hole mounting, this connector features a right angle orientation with the tab facing up, making it suitable for PCB applications where space is constrained.
The jack includes shielding with an EMI finger to reduce electromagnetic interference, ensuring reliable performance in high-speed networking environments. It supports 10/100/1000 Base-T Ethernet with AutoMDIX, allowing automatic crossover detection and correction. The connector has gold plated contacts over a copper alloy base for corrosion resistance and reliable connectivity.
With an operating temperature range of 0°C to 70°C, this component is suitable for standard commercial and industrial networking equipment. The board guide feature aids in accurate alignment during assembly. The connector is RoHS and REACH compliant, though these certifications are unverified.
This 4-port jack is ideal for use in Ethernet switches, routers, network interface cards, and other data communication equipment requiring compact, high-density connectivity solutions.
RJ45.
4 ports.
Through Hole.
90° Angle (Right).
Yes, shielded with EMI finger.
10/100/1000 Base-T and AutoMDIX.
0°C to 70°C.
