| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
120 pcs
|
120 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Features | |
| Height Above Board | |
| LED Color | |
| Lead Style | |
| Mounting Type | |
| Number of Cores per Jack | |
| Number of Ports | |
| Number of Rows | |
| Operating Temperature | |
| Orientation | |
| Shielding | |
| Tab Direction | |
| Termination |

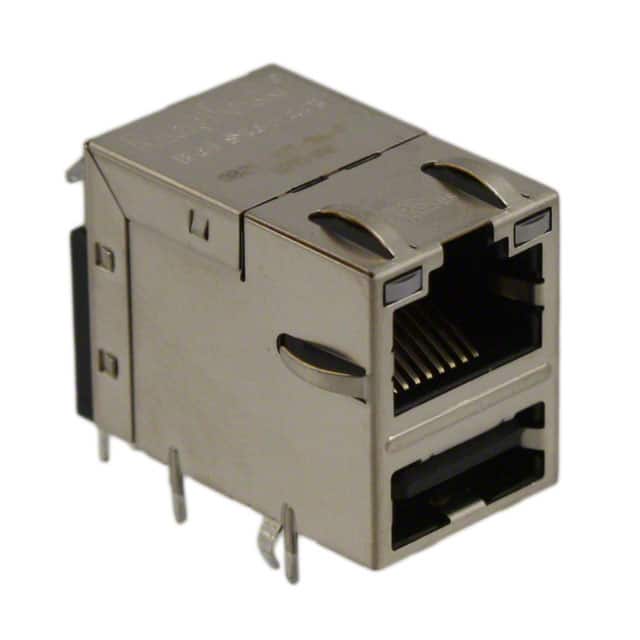

The Bel Fuse 0821-1X1T-36-F is a 1-port modular connector jack with integrated magnetics, combining an RJ45 and USB A interface in a single through-hole package. This right-angle (90°) connector is designed for 10/100 Base-T Ethernet applications with AutoMDIX support.
Key mechanical features include a shielded design with EMI fingers, a board lock for secure PCB mounting, and a tab direction pointing up. The contact material is copper alloy with a gold finish, ensuring reliable connectivity. The height above board is 21.08 mm. Green and orange-yellow LED indicators provide link and activity status.
The connector is suitable for industrial temperature ranges from -40°C to 85°C. It is solder-terminated and designed for through-hole mounting in networking equipment such as switches, routers, and industrial control interfaces.
Through hole.
Yes, it is shielded with EMI fingers.
-40°C to 85°C.
10/100 Base-T with AutoMDIX.
Green and orange-yellow.
90° angle (right).
