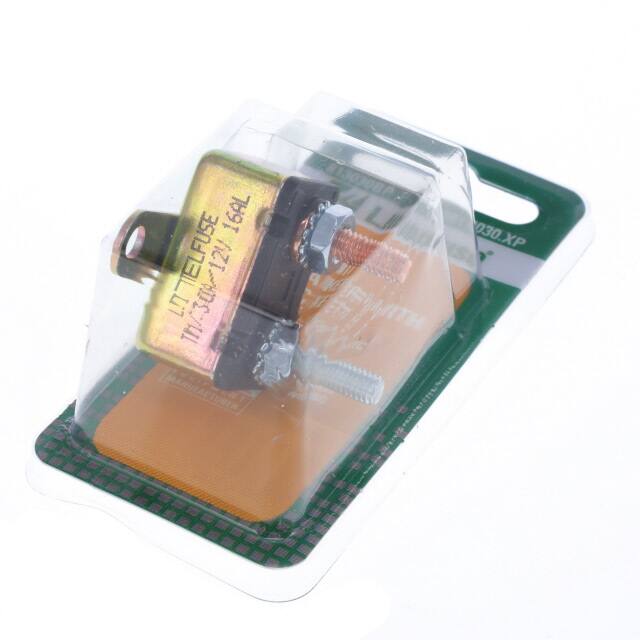

0813030.XP The Littelfuse Inc. 0813030.XP is a 12VDC circuit breaker with a 30A current rating. It features an automatic reset function and chassis mount.
Mfr Part #:

0813030.XP

Mfr Name: Littelfuse Inc.
Littelfuse Inc.
The Littelfuse Inc. 0813030.XP is a 12VDC circuit breaker with a 30A current rating. It features an automatic reset function and chassis mount.
Stock on Request

0813030.XP Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Type
Current Rating
Current Rating (Amps)
Mounting Type
Number of Poles
Voltage Rating
View Similar Products (0)

0813030.XP Description

Short technical summary and product information.

This Littelfuse Inc. 0813030.XP is a single-pole circuit breaker designed for 12VDC applications. It offers a current rating of 30A and features an automatic reset mechanism, allowing it to reset itself after tripping.



The circuit breaker is designed for chassis mounting, providing a secure and stable installation in various systems. Its primary function is to protect electrical circuits from overcurrent conditions, preventing damage to equipment and ensuring operational safety.



Key electrical characteristics include a 12VDC voltage rating and a 30A current capacity. The automatic reset feature is beneficial for applications where manual intervention is impractical or undesirable. The component is suitable for use in systems requiring reliable overcurrent protection.

0813030.XP Quick Information

Product Type: Circuit Breaker
Series: 813
Canonical Name: Littelfuse Inc. 0813030.XP Circuit Breaker

0813030.XP Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

0813030.XP Features

  • 30A current rating for circuit protection.
  • 12VDC operating voltage.
  • Automatic reset function included.
  • Single pole design.
  • Chassis mount for secure installation.

0813030.XP Applications

  • Ideal for automotive electrical systems.
  • Suitable for industrial control panels.
  • Used in power distribution units.
  • Applicable in DC power supplies.

0813030.XP FAQs

5 frequently asked questions generated from this part’s specifications.
What is the operating voltage of the 0813030.XP?

12 V.

What is the current rating of the 0813030.XP?

30 A.

What type of actuator does the 0813030.XP have?

Automatic Reset.

How many poles does the 0813030.XP have?

1 pole.

What is the mounting type for the 0813030.XP?

Chassis Mount.

0813030.XP Alternate Parts

Same form/fit/function or matching attribute configuration across different manufacturers.
View All Alternate Parts
30056-30
30056-30
Littelfuse Inc.
Circuit breaker rated 30A at 12V DC with automatic reset. Single pole, chassis mount design.
View Part
30138-30
30138-30
Littelfuse Inc.
The Littelfuse Inc. 30138-30 is a 1-pole circuit breaker rated for 30A and 12V. It features an automatic reset and chassis mount.
View Part
ACBP-12-V-30A
ACBP-12-V-30A
OptiFuse
The OptiFuse ACBP-12-V-30A is an automatic reset circuit breaker designed for 12V DC systems. It features a 30A current rating and chassis mount.
View Part
CBC-30BWP
CBC-30BWP
Eaton - Electronics Division
The Eaton - Electronics Division CBC-30BWP is a 1-pole circuit breaker rated for 30A and 12V. It features an automatic reset function and chassis mount.
View Part
