| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
65,000 pcs
|
65000 pcs | On Request | 1 | On Request | On Request | 1412+ | On Request | On Request | |
|
1,800 pcs
|
1800 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Height | |
| Inductance | |
| Lead Style | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Q @ Freq | |
| Shielding | |
| Supplier Device Package | |
| Tape & Reel | |
| Termination Style | |
| Tolerance | |
| Type | |
| Width |

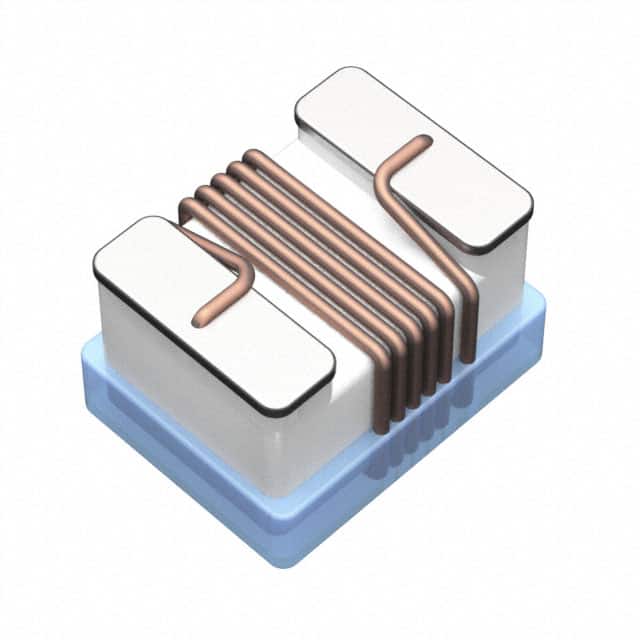

The 0805CS-221EGTS is a fixed inductor from Delta Electronics, part of the 0805CS series. It features a wirewound ceramic core construction with an inductance of 220 nH and a tolerance of ±2%. The inductor is rated for a maximum DC current of 400 mA and has a maximum DC resistance of 700 mΩ. It offers a minimum Q factor of 50 at 250 MHz and a self-resonant frequency of 850 MHz minimum. The component is unshielded and designed for surface mount applications. It comes in an 0805 (2012 Metric) package with dimensions 2.29 mm x 1.80 mm x 1.55 mm. The operating temperature range is -40°C to 125°C. This inductor is suitable for RF circuits and high-frequency applications where stable inductance and low losses are required.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.18 | $0.18 |
| 10+ | $0.15 | $0.15 |
| 100+ | $0.12 | $0.12 |
| 2,000+ | $0.10 | $0.10 |
| 4,000+ | $0.09 | $0.09 |
| 6,000+ | $0.09 | $0.09 |
| 10,000+ | $0.08 | $0.08 |
| 50,000+ | $0.08 | $0.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
220 nH.
400 mA.
700 mΩ maximum.
850 MHz minimum.
0805 (2012 Metric).
Minimum 50 at 250 MHz.
-40°C to 125°C.
