| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
60 pcs
|
60 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Air Flow | |
| Bearing Type | |
| Control Features | |
| Current | |
| Fan Type | |
| Features | |
| Ingress Protection | |
| Insulation Resistance | |
| Noise | |
| Operating Temperature | |
| Power (Watts) | |
| RPM | |
| Rotation | |
| Static Pressure | |
| Storage Temperature | |
| Termination | |
| Termination Style | |
| Voltage | |
| Weight | |
| Width |

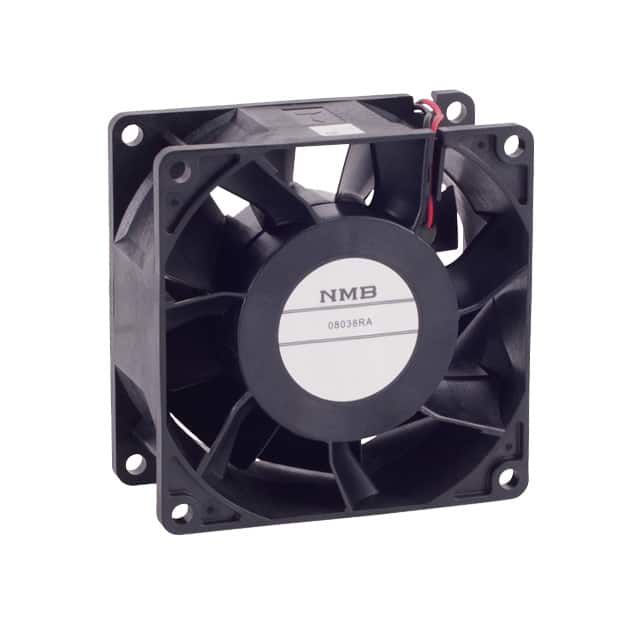

An 80mm x 38mm DC brushless tubeaxial fan from NMB Technologies, model 08038RA-24Q-GA-00. It is rated for 24 VDC and operates over a 14.0 to 27.6 V supply range. The fan draws 0.60 A and consumes 14.4 W of power.
Performance highlights include a maximum air flow of 91.82 CFM (2.60 m³/min) and a maximum static pressure of 1.04 in H2O (260 Pa). At its rated speed of 6500 RPM it generates 56.0 dB of noise. A ball bearing system provides an expected L10 life of 80,000 hours at 25°C.
Built for harsh environments, the fan features an IP69K ingress rating, making it dust-tight and resistant to high-pressure water jets. The casing and impeller are molded from black UL94V-0 plastic. Electrical protection includes auto restart, polarity protection, and locked rotor sensing. Control is provided through PWM input and a tachometer output. Lead wires are UL3385, AWG26, with red positive, black negative, and white tachometer signals.
Mechanical dimensions are 80mm x 80mm with a 38mm width, and panel cut-out dimensions are 71.5mm x 71.5mm. Rotation is clockwise, with air outflow over the struts. Operating temperature range is -10°C to +70°C, while storage temperature is -40°C to +70°C. The fan weighs 240 g.
| Qty | Low | High |
|---|---|---|
| 1+ | $37.92 | $37.92 |
| 10+ | $30.41 | $30.41 |
| 25+ | $26.34 | $26.34 |
| 40+ | $25.39 | $25.39 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The rated voltage is 24 VDC, with an operating range of 14.0 to 27.6 VDC.
Operating temperature is -10°C to +70°C; storage temperature is -40°C to +70°C.
The fan delivers 91.82 CFM (2.60 m³/min) maximum air flow.
The fan uses a ball bearing system.
The fan is rated IP69K, protecting against dust and high-temperature water jets.
The existing database lists the fan as RoHS3 Compliant, but this status is unverified.
