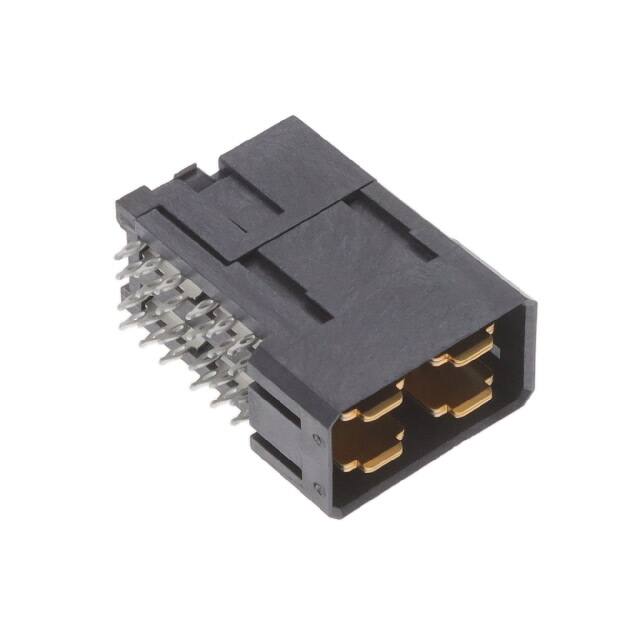

0782131011 Molex 0782131011 is a 4-position power header connector with male blades. It features board edge, through hole, right angle mounting with press-fit termination and gold contact finish.
Mfr Part #:

0782131011

Available from 2 distributors
Mfr Name: Molex
Molex
Molex 0782131011 is a 4-position power header connector with male blades. It features board edge, through hole, right angle mounting with press-fit termination and gold contact finish.
✓ Total Stock: 536 pcs

0782131011 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
268 pcs
On Request
268 pcs On Request 1 On Request On Request On Request On Request On Request
RAD ✓
Non-Authorised Inventory information
268 pcs
On Request
268 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

0782131011 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Connector Style
Connector Type
Contact Finish
Contact Finish Thickness
Contact Layout, Typical
Halogen Free
Lead Style
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
SVHC Present
Storage Temperature
Termination
View Similar Products (0)

0782131011 Description

Short technical summary and product information.

The Molex 0782131011 is a specialized power header connector designed for backplane applications. It features a 4-position, 2-row configuration with male blade contacts. The connector is mounted using board edge, through hole, right angle mounting with press-fit termination for secure attachment. Contacts are finished with 30µin gold for reliable conductivity. The housing is black. This connector is RoHS3 compliant and has an MSL of 1 (unlimited). It is suitable for power distribution in backplane systems.

0782131011 Quick Information

Product Type: Power Header Connector
Series: Impact 78213
Canonical Name: Molex 0782131011 Power Header Connector, 4 Position, Board Edge Mount, Press-Fit
Subcategory: Power Connectors

0782131011 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

0782131011 Features

  • 4-position, 2-row power header connector.
  • Board edge, through hole, right angle mounting.
  • Press-fit termination for secure connection.
  • Gold contact finish with 30µin thickness.
  • RoHS3 compliant with MSL 1.

0782131011 Applications

  • Used in backplane power distribution systems.
  • Suitable for board-to-board power connections.
  • Ideal for high-reliability industrial applications.

0782131011 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the Molex 0782131011 have?

4 positions.

What is the mounting type for this connector?

Board edge, through hole, right angle.

What is the termination method?

Press-fit.

What is the contact finish?

Gold with 30µin thickness.

How many rows does it have?

2 rows.

Is this connector RoHS compliant?

Yes, RoHS3 compliant (unverified).

What is the MSL rating?

MSL 1 (Unlimited) (unverified).
