| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,500 pcs
|
4500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| SVHC Present | |
| Shrouding | |
| Storage Temperature | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

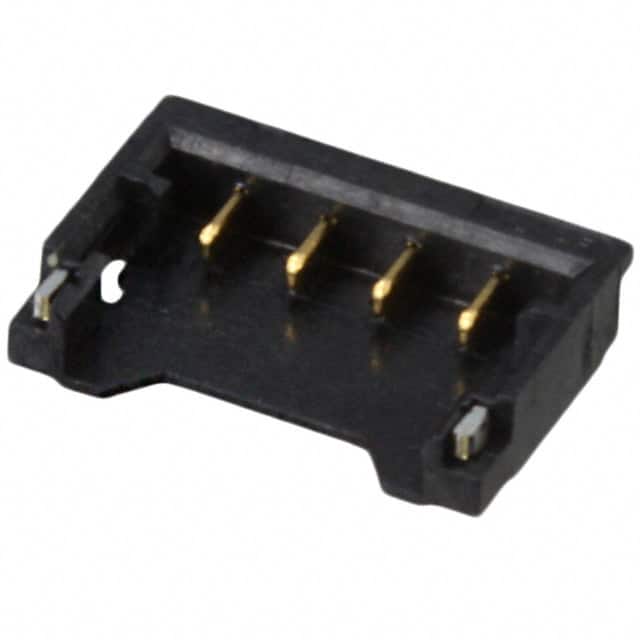

The Molex 0781710004 is a 4-position, single-row shrouded male pin header (plug) with a 1.20mm pitch. It is designed for board-to-cable/wire connections and features a 3-wall shrouded design for protection and alignment. The connector uses a friction lock fastening type to ensure secure mating.
The connector is rated for 50V DC operation and has an operating temperature range of -25°C to 85°C. The insulation material is Liquid Crystal Polymer (LCP) with a UL94 V-0 flammability rating, providing reliable performance in demanding environments.
The header is surface mount (SMD) with solder termination and includes solder retention features for improved board-level reliability. The contacts are made of copper alloy with a gold finish, ensuring low contact resistance and corrosion resistance. The insulation height is 1.40mm, and the connector is fully loaded with 4 positions.
This connector is suitable for compact electronic devices where space is limited, such as portable electronics, consumer devices, and industrial control systems. Its 1.20mm pitch allows for high-density interconnections.
4 positions.
1.20mm.
50V.
Surface mount (SMD).
-25°C to 85°C.
Gold.
Friction lock.
