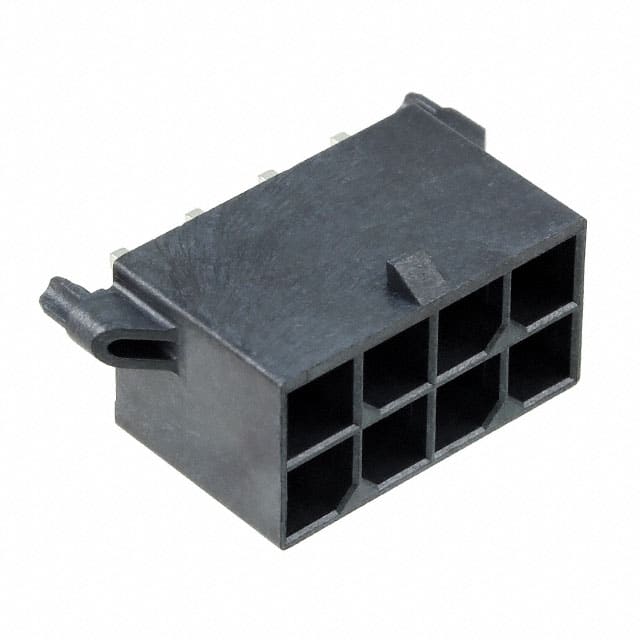

The Molex 0768290008 is a vertical, through-hole header from the Mega-Fit power connector family. It features 8 positions arranged in 2 rows with a 5.70mm pitch and row spacing, designed for board-to-cable/wire applications. The header is fully shrouded with a 4-wall design and includes a locking ramp for secure mating with Mega-Fit receptacles.
Electrical ratings include a current rating of 23.0A per circuit and a voltage rating of 600V, supported by a split-box terminal design with six independent points of contact. The contacts are male pins made of high-conductivity copper with a Tin finish, rated for 25 mating cycles. The housing is molded from black Liquid Crystal Polymer (LCP) with a UL94 V-0 flammability rating.
Mechanical features include a board guide and glow wire compliance. The operating temperature range is -40°C to +105°C. This header is suitable for power distribution in consumer appliances, networking equipment, industrial machinery, and commercial vehicles.
23.0A per circuit.
600V.
8 positions, all loaded, in 2 rows.
5.70mm (0.224 inches).
Through hole with solder termination.
-40°C to +105°C.
Yes, RoHS3 compliant per the datasheet.
