| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
392 pcs
|
392 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Layout, Typical | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Columns | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Termination |

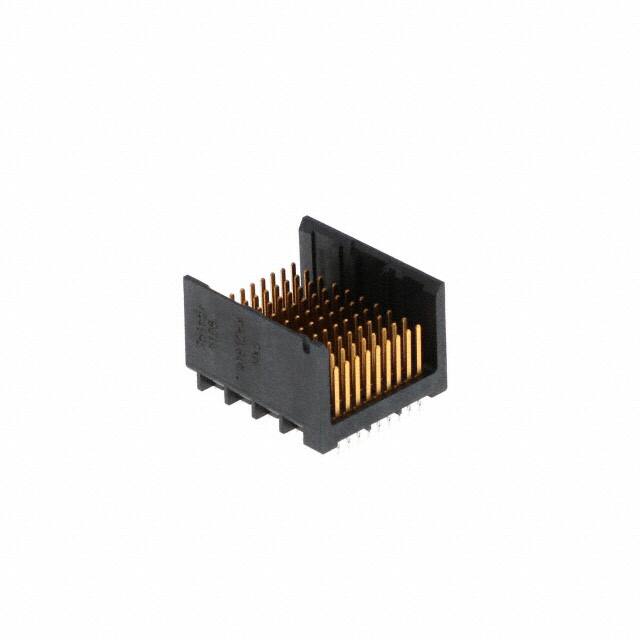

The Molex 0761651108 is an Impact series header connector with male pins. It features 90 positions arranged in 9 rows with 10 columns, providing 30 differential pairs. The connector uses a 1.35mm pitch and is designed for through hole mounting with press-fit termination. The contacts are finished with 30.0µin (0.76µm) gold for reliable conductivity. The connector body is black. This header is suitable for high-speed backplane applications requiring differential pair signaling. The press-fit termination allows for solderless assembly, reducing manufacturing steps. The through hole mounting provides robust mechanical attachment to the PCB.
| Qty | Low | High |
|---|---|---|
| 1+ | $13.91 | $13.91 |
| 10+ | $11.82 | $11.82 |
| 25+ | $11.08 | $11.08 |
| 56+ | $10.47 | $10.47 |
| 112+ | $9.97 | $9.97 |
| 280+ | $9.35 | $9.35 |
| 504+ | $8.97 | $8.97 |
| 1,008+ | $8.54 | $8.54 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
90 positions.
1.35mm (0.053 inches).
Through hole.
Press-fit.
9 rows.
Gold, 30.0µin (0.76µm) thickness.
Impact.
