0761601020 Molex Impact receptacle with 120 female socket positions in a 12-row by 10-column arrangement, 1.35mm pitch, right angle press-fit termination, gold contact finish.
Mfr Part #:

0761601020

Available from 2 distributors
Mfr Name: Molex
Molex
Molex Impact receptacle with 120 female socket positions in a 12-row by 10-column arrangement, 1.35mm pitch, right angle press-fit termination, gold contact finish.
✓ Total Stock: 300 pcs

0761601020 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
150 pcs
On Request
150 pcs On Request 1 On Request On Request On Request On Request On Request
RAD ✓
Non-Authorised Inventory information
150 pcs
On Request
150 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

0761601020 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Connector Style
Connector Type
Contact Finish
Contact Finish Thickness
Features
Lead Spacing
Lead Style
Mounting Type
Number of Columns
Number of Positions
Number of Positions Loaded
Number of Rows
Pitch
SVHC Present
Storage Temperature
Termination
View Similar Products (0)

0761601020 Description

Short technical summary and product information.

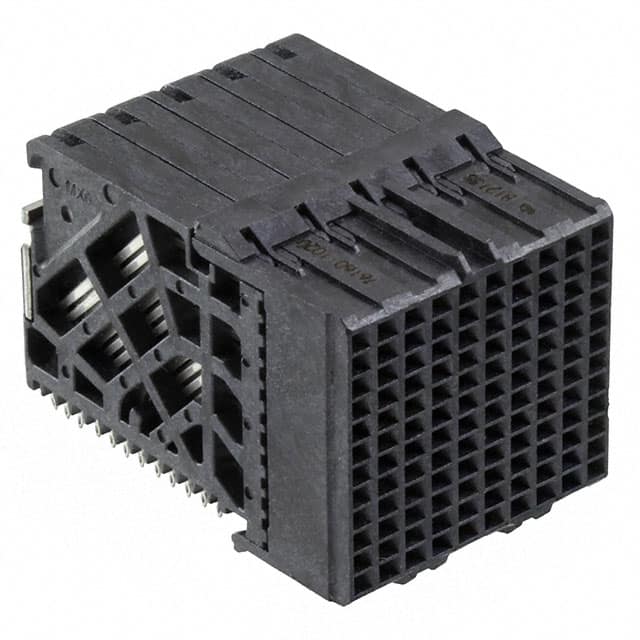

The Molex 0761601020 is an Impact series receptacle connector designed for high-speed backplane applications. It features 120 positions arranged in 12 rows and 10 columns with a 1.35mm pitch, providing a dense interconnect solution. The connector uses a press-fit termination for reliable, solderless board attachment and is mounted on the board edge with a right-angle orientation. Contacts are finished with 30.0µin gold for robust signal integrity and corrosion resistance. The black housing includes an integrated board guide feature to assist alignment during assembly. This connector is RoHS3 compliant and has an MSL rating of 1 (unlimited).

0761601020 Quick Information

Product Type: Backplane Connector
Series: 0761601020
Canonical Name: Molex Impact 120 Position Receptacle, Female Sockets, Right Angle Press-Fit
Subcategory: Impact

0761601020 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

0761601020 Features

  • 120 positions in 12 rows by 10 columns.
  • 1.35mm pitch for dense routing.
  • Right angle press-fit termination.
  • 30.0µin gold contact finish.
  • Integrated board guide feature.

0761601020 Applications

  • High-speed backplane interconnect systems.
  • Telecommunications and networking equipment.
  • Data center server and switch backplanes.
  • Industrial control backplane assemblies.

0761601020 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the connector type and style?

Receptacle, Female Sockets in Impact style.

How many positions does this connector have?

120 positions, all loaded.

What is the pitch of this connector?

1.35mm (0.053").

What is the mounting type and termination?

Board edge, through hole, right angle mounting with press-fit termination.

What is the contact finish?

Gold, 30.0µin (0.76µm) thickness.
