| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
300 pcs
|
300 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Material | |
| Current Rating | |
| Current Rating (Amps) | |
| For Use With | |
| Fuse Size | |
| Fuse Type | |
| Fuseholder Type | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Circuits | |
| Orientation | |
| Storage Temperature | |
| Termination Style | |
| Voltage | |
| Voltage Rating |

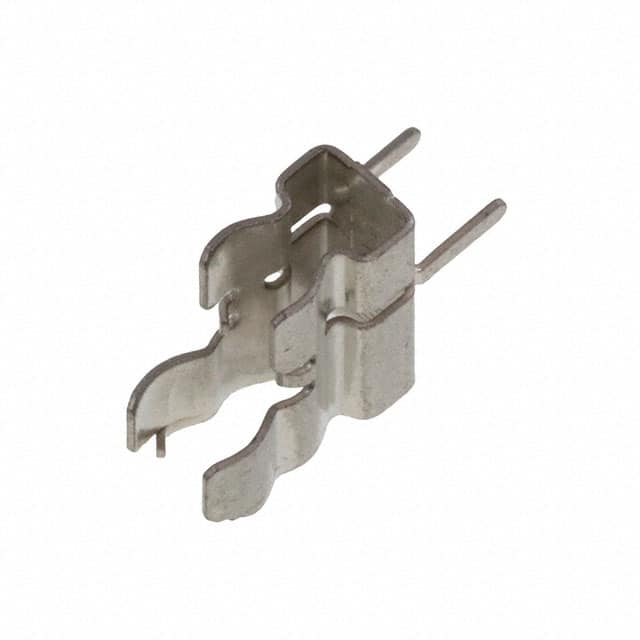

The Schurter 0751.0141 is a through-hole fuse clip designed for use with 1/4" diameter (6.35mm) and 5mm diameter cartridge fuses. It is rated for 16A continuous current at 600V, making it suitable for high-voltage circuit protection applications.
This fuse clip features a horizontal orientation and PC pin termination for direct soldering to a printed circuit board. The contacts are made of bronze with a tin finish, providing reliable electrical connection and corrosion resistance. The single-circuit design is compact and suitable for space-constrained layouts.
Typical applications include power supplies, industrial controls, and other equipment requiring a replaceable cartridge fuse in a through-hole mounted holder. The clip accepts both 1/4" (6.35mm) and 5mm diameter fuses, offering flexibility in fuse selection.
The fuse clip is rated for 16 A continuous current.
The voltage rating is 600 V.
It accepts cartridge fuses with 1/4" (6.35mm) and 5mm diameters.
Through-hole mounting with PC pin termination.
Bronze contact material with tin finish.
