| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
726 pcs
|
726 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| China RoHS | |
| Climatic Category | |
| Contact Finish | |
| Contact Material | |
| Contact Resistance | |
| Current Rating | |
| Current Rating (Amps) | |
| For Use With | |
| Fuse Size | |
| Fuse Type | |
| Fuseholder Type | |
| Lead Style | |
| Mounting Type | |
| Number of Circuits | |
| Operating Temperature Range | |
| Orientation | |
| Rated Voltage | |
| Soldering Method | |
| Storage Temperature Range | |
| Tape & Reel | |
| Termination Style | |
| Unit Weight | |
| Voltage | |
| Voltage Rating |

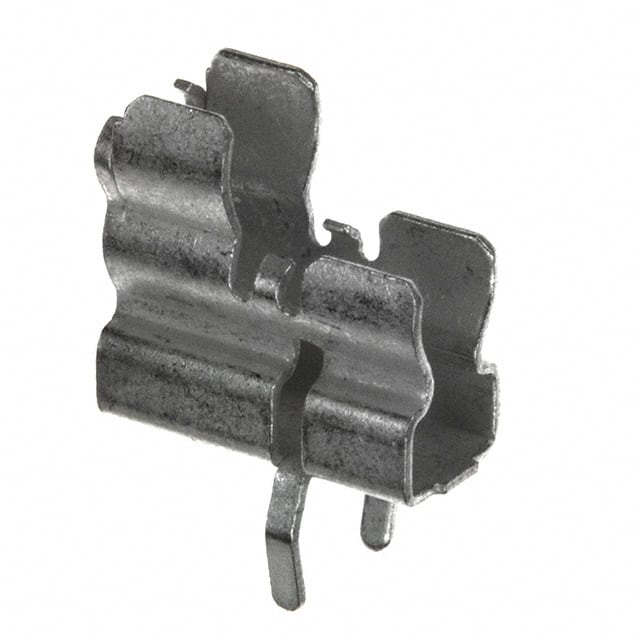

The Schurter 0751.0099 is a fuse clip from the OG (Clip) series designed to accommodate both 5x20mm and 6.3x32mm cartridge fuses. It features a through hole mounting style with PC pin termination for secure PCB attachment. The clip is rated for 1000VAC/DC and 16A current, making it suitable for industrial control equipment and power supply applications.
The fuse clip is constructed with bronze contacts and tin plating, ensuring reliable electrical connection with contact resistance less than 10 mΩ at 100 mA. It operates over a temperature range of -40°C to 85°C and is wave solderable. The unit weight is 0.98 g.
This component complies with RoHS, REACH, and China RoHS directives. It is designed according to UL 4248-1 and CSA C22.2 no. 4248.1 standards, and is suitable for applications per IEC/UL 62368-1. The climatic category is 40/085/21 per IEC 60068-1.
16 A.
1000 VAC/DC.
5mm x 20mm and 6.3mm x 32mm cartridge fuses.
Through hole with PC pin termination.
-40°C to 85°C.
Less than 10 mΩ at 100 mA.
Yes, RoHS3 compliant per manufacturer.
