| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,810 pcs
|
1810 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Climatic Category | |
| Contact Finish | |
| Contact Material | |
| Contact Resistance | |
| Current Rating | |
| Current Rating (Amps) | |
| For Use With | |
| Fuse Size | |
| Fuse Type | |
| Fuseholder Type | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Circuits | |
| Operating Temperature | |
| Orientation | |
| Package / Case | |
| Resistance to Soldering Heat | |
| Solderability | |
| Soldering Method | |
| Storage Temperature | |
| Termination Style | |
| Voltage Rating | |
| Weight |

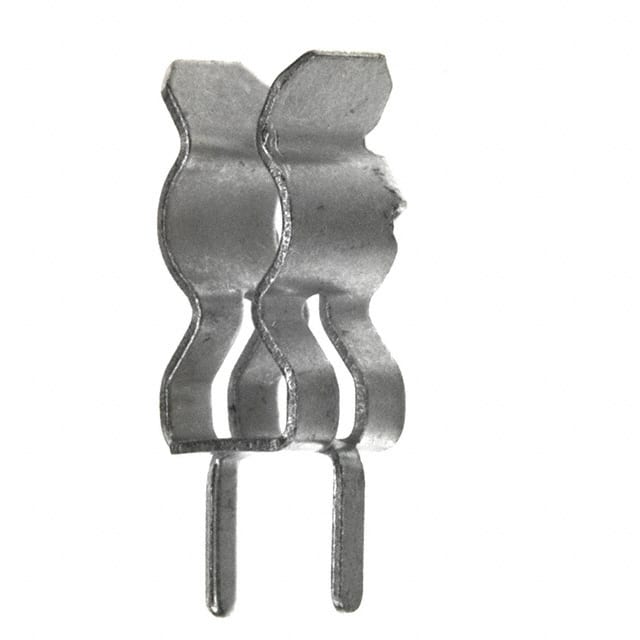

The Schurter 0751.0052 is a fuse clip from the OG (Clip) 5x20 series, designed for 5mm x 20mm cartridge fuses. It features a bronze contact with tin finish and PC pin termination for through-hole soldering. The clip is rated for 10A continuous current at 500VAC/DC, making it suitable for industrial control equipment and applications per IEC/UL 62368-1. It operates in ambient temperatures from -40°C to 85°C and is classified under climatic category 40/085/21 per IEC 60068-1. The component weighs 0.55g and supports wave soldering with a solderability profile of 245°C for 3 seconds and resistance to soldering heat at 260°C for 10 seconds. Contact resistance is less than 10mΩ at 100mA. The clip is RoHS and REACH compliant, with UL UR approval under file E39328. Optional covers are available as accessories.
The fuse clip is rated for 10A continuous current.
The clip is rated for 500VAC/DC.
It accepts 5mm x 20mm cartridge fuses.
-40°C to 85°C.
Through-hole mounting with PC pin termination.
Yes, RoHS3 compliant as per datasheet.
Wave soldering, with solderability at 245°C for 3 seconds and resistance to soldering heat at 260°C for 10 seconds.
