| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
168 pcs
|
168 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Features | |
| Gender | |
| Lead Style | |
| Mating Cycles | |
| Mounting Feature | |
| Mounting Type | |
| Number of Contacts | |
| Number of Ports | |
| Operating Temperature | |
| Shielding | |
| Termination | |
| Voltage |

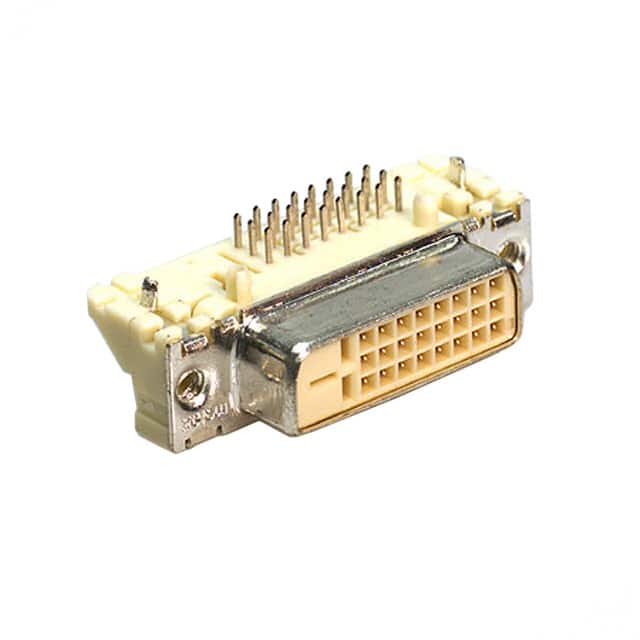

The Molex 0743204004 is a DVI-D Dual Link receptacle connector designed for digital video display interfaces. It features 24 contacts arranged for dual link DVI applications, supporting high-resolution video transmission. The connector is rated for 3A per contact and 40VAC, making it suitable for standard video signal levels.
Mechanically, the part offers a panel mount, through hole, right angle orientation with a flange and horizontal mounting feature. It includes a board guide for alignment and is fully shielded to reduce electromagnetic interference. The operating temperature range is -20°C to 85°C, accommodating a wide variety of environments.
With a mating cycle rating of 100 cycles, this connector is designed for moderate durability. Termination is via solder, ensuring reliable connections in PCB assemblies. The single-port design is ideal for dedicated DVI output or input applications.
3A per contact.
40VAC.
24 contacts.
Panel Mount, Through Hole, Right Angle.
Yes, it is shielded.
-20°C to 85°C.
100 cycles.
