| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
21 pcs
|
21 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Current Rating (Amps) | |
| Features | |
| Gender | |
| Lead Style | |
| Mating Cycles | |
| Mounting Feature | |
| Mounting Type | |
| Number of Contacts | |
| Number of Ports | |
| Operating Temperature | |
| Shielding | |
| Termination | |
| Termination Style | |
| Voltage | |
| Voltage Rating |

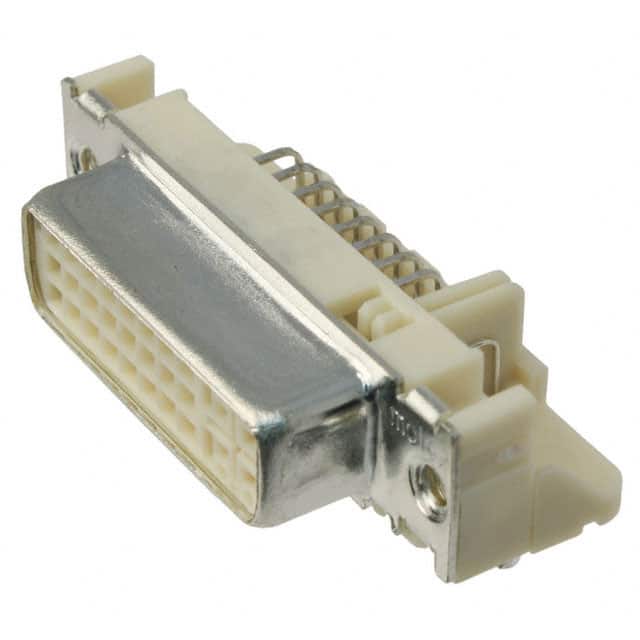

The Molex 0743201003 is a DVI-I Dual Link receptacle connector designed for high-resolution digital video applications. It supports dual link DVI signals with 29 contacts arranged in a single port.
Key electrical specifications include a current rating of 3A per contact and a voltage rating of 40VAC. The connector is shielded for EMI protection and includes a board guide feature for alignment during mating.
Mechanically, it offers a panel mount design with a flange and horizontal orientation. Termination is through hole right angle solder, making it suitable for PCB mounting. The operating temperature range is -20°C to 85°C, with a durability of 100 mating cycles.
Typical applications include computer monitors, digital signage, and industrial displays requiring DVI video connectivity.
It has 29 contacts.
3A per contact.
40VAC.
Panel mount, through hole, right angle.
It is a DVI-I Dual Link receptacle.
Yes, it is shielded.
-20°C to 85°C.
