| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
200 pcs
|
200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| 1st Connector | |
| 2nd Connector | |
| Approval Agency Marking | |
| Cord Type | |
| Current Rating (Amps) | |
| Fits Terminal Size | |
| Lead Style | |
| Length | |
| Number of Conductors | |
| Operating Temperature | |
| SVHC Present | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating | |
| Wire Gauge |

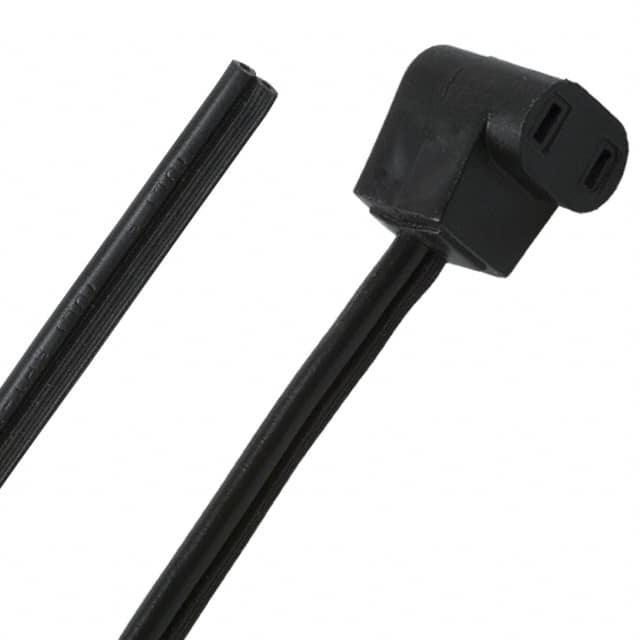

The Qualtek 07190-12 is a 12-inch (305mm) 90° style fan power cord designed to connect a fan to a power source. It features a female fan terminal receptacle at one end and open wires with blunt cut termination at the other, making it suitable for hardwiring or crimp connections.
The cord uses SPT-1 parallel lamp cord with two 18 AWG conductors, rated for 105°C and 300V. The electrical rating is 10A at 125VAC and 5A at 250VAC. The right-angle connector saves space and reduces strain on the fan receptacle. It is UL and cUL approved, and RoHS, REACH, EU PoP, EU Biocides, and PFAS compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.57 | $1.57 |
| 10+ | $1.32 | $1.32 |
| 20+ | $1.24 | $1.24 |
| 50+ | $1.16 | $1.16 |
| 100+ | $1.07 | $1.07 |
| 200+ | $1.05 | $1.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The cordage is rated for 105°C operating temperature.
Yes, it is RoHS3 compliant per directive 2011/65/EU amended to 2025/2364.
