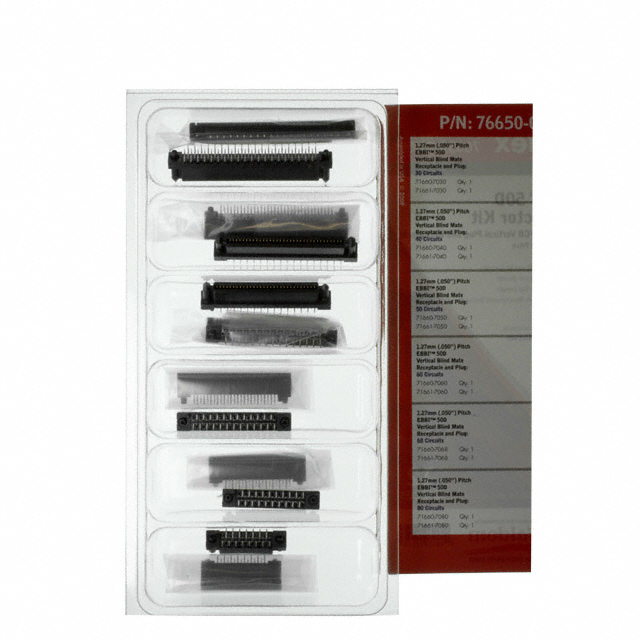

0716617068 68 position vertical plug connector from Molex with center strip contacts, through hole mounting, and gold contact finish.
Mfr Part #:

0716617068

Available from 1 distributors
Mfr Name: Molex
Molex
68 position vertical plug connector from Molex with center strip contacts, through hole mounting, and gold contact finish.
✓ Total Stock: 226 pcs
$ Price Range: $6.17

0716617068 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Husky International Electronic ✓
Non-Authorised Inventory information
226 pcs
On Request
226 pcs On Request 1 On Request On Request N/A On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

0716617068 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Features
Height Above Board
Lead Spacing
Lead Style
Mounting Type
Number of Positions
Number of Rows
Pitch
Termination Style
View Similar Products (0)

0716617068 Description

Short technical summary and product information.

The Molex 0716617068 is a 68-position plug connector featuring center strip contacts arranged in 2 rows with a 1.27mm pitch. This through hole mounting connector has gold contact finish with 0.76µm thickness for reliable conductivity. With a height above board of 9.20mm, it includes a board guide feature for accurate alignment during assembly.



Designed for board-to-board and mezzanine applications, this connector provides a vertical mating interface. The center strip contact design minimizes signal path lengths, making it suitable for high-density interconnect needs in compact electronic assemblies.



The connector uses solder termination for permanent attachment to the PCB. Its through hole mounting style offers robust mechanical retention suitable for applications requiring durable connections.

0716617068 Quick Information

Product Type: Board to Board Connector
Canonical Name: Molex 0716617068 68 Position Plug, Center Strip Contacts Through Hole Connector
Subcategory: Board to Board Connector

0716617068 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: REACH Unaffected

0716617068 Estimated Pricing

Qty Low High
672+ $6.17 $6.17

Estimated market price range - modelled values for guidance only, not live distributor offers.

0716617068 Features

  • 68 position dual-row center strip contacts.
  • Through hole mounting with solder termination.
  • Gold contact finish with 0.76µm plating.
  • 1.27mm pitch for high-density designs.
  • 9.20mm height with integral board guide.

0716617068 Applications

  • Used in board-to-board mezzanine interconnects.
  • Ideal for high-density signal routing applications.
  • Suitable for vertical stacking of PCBs.
  • Applied in compact electronic device assemblies.

0716617068 FAQs

5 frequently asked questions generated from this part’s specifications.
How many positions does the Molex 0716617068 have?

68 positions in 2 rows.

What is the pitch of the connector?

1.27mm (0.050 inch).

What is the mounting type?

Through hole with solder termination.

What is the contact finish?

Gold with 0.76µm thickness.

What is the height above board?

9.20mm.
