| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Conductor Cross Section Flexible Max | |
| Conductor Cross Section Flexible Min | |
| Conductor Cross Section Solid Max | |
| Conductor Cross Section Solid Min | |
| Connection Method | |
| Connection Standard | |
| Country of Origin | |
| Current | |
| Custom Tariff Number | |
| Flammability Rating | |
| Front Panel Wire Connection | |
| Insulating Material | |
| Insulating Material Group | |
| Lead Style | |
| Length | |
| Maximum Load Current | |
| Nominal Cross Section | |
| Nominal Current | |
| Nominal Voltage | |
| Number of Connections | |
| Number of Levels | |
| Number of Positions | |
| Overvoltage Category | |
| Packing Unit | |
| Panel Mount Type | |
| Panel Thickness | |
| Panel Thickness (max) | |
| Panel Thickness Min | |
| Pollution Degree | |
| Positions Per Level | |
| Rated Surge Voltage | |
| Rear Panel Wire Connection | |
| Voltage | |
| Weight per Piece | |
| Width | |
| Wire Gauge | |
| Wire Gauge Max | |
| Wire Gauge Min |

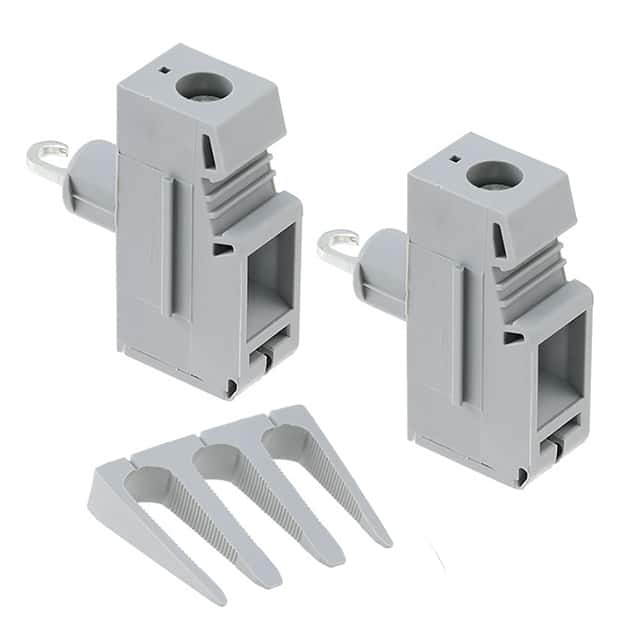

The Phoenix Contact 0711056 VDFK 6/K is a panel feed-through terminal block designed for reliable through-panel wiring connections. It features a single level with one position and two connections, supporting a nominal cross section of 6 mm². The terminal block accepts solid conductors from 0.2 mm² to 10 mm² and flexible conductors from 0.2 mm² to 6 mm², covering AWG sizes 24 to 8.
Electrical ratings include a nominal current of 41 A, a maximum load current of 57 A, and a nominal voltage of 500 V, with a rated surge voltage of 6 kV. The insulating material is polyamide (PA) with a V0 flammability rating per UL 94. The screw connection method ensures secure wire termination, and the gray housing provides touch-proof insulation.
Designed for panel mounting with a 2-piece construction, the terminal block has a width of 10 mm and a length of 30.2 mm, accommodating panel thicknesses from 1 mm to 4 mm. It complies with IEC 60947-7-1 and is suitable for overvoltage category III, pollution degree 3 environments.
The nominal current is 41 A, with a maximum load current of 57 A.
The nominal voltage is 500 V.
It accepts solid conductors from 0.2 mm² to 10 mm² and flexible conductors from 0.2 mm² to 6 mm², corresponding to AWG 24 to 8.
It uses a screw connection method.
The insulating material is polyamide (PA) with a V0 flammability rating per UL 94.
The terminal block can be mounted on panels with thickness from 1 mm to 4 mm.
