| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
48 pcs
|
48 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AWG Wire Size | |
| Assembly | |
| Color | |
| Connection Method | |
| Contact Surface | |
| Country of Origin | |
| Current | |
| Current Rating | |
| Flammability Rating | |
| Front Panel Wire Connection | |
| Housing Material | |
| Insulating Material Group | |
| Lead Spacing | |
| Lead Style | |
| Minimum Order Quantity | |
| Nominal Cross Section | |
| Nominal Current (UL Group D) | |
| Nominal Current (UL) | |
| Nominal Voltage (UL Group D) | |
| Nominal Voltage (UL) | |
| Number of Levels | |
| Number of Positions | |
| Packing Unit | |
| Panel Mount Type | |
| Panel Thickness | |
| Pitch | |
| Pitch Spacing a | |
| Positions Per Level | |
| Rated Surge Voltage | |
| Rear Panel Wire Connection | |
| Voltage | |
| Voltage Rating | |
| Weight per Piece | |
| Width | |
| Wire Cross Section (Solid) | |
| Wire Cross Section (Stranded) |

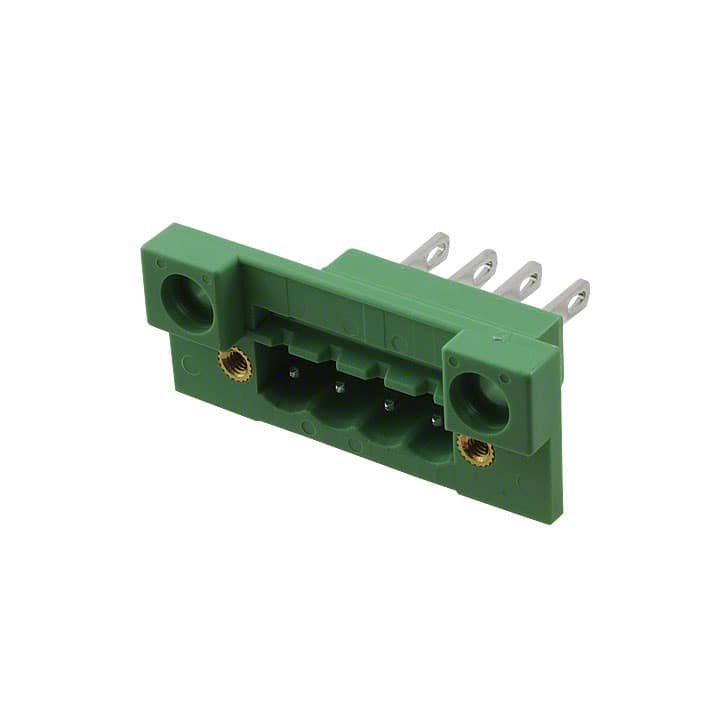

The Phoenix Contact 0710196 is a 4-position panel mount terminal block header from the DFK-MSTB 2,5/..-GF series. It is designed for direct mounting in device or housing panels using two M3 x 10 screws. The front side accepts corresponding MSTB 2,5 or FKC 2,5 plugs, while the rear side offers solder or 2.8mm slip-on (quick connect) connections.
Electrically, the header is rated for a nominal current of 12A and a rated voltage of 320V (IEC 60664-1, III/2). It withstands a rated surge voltage of 4 kV. The wire cross-section range is 0.2 to 2.5 mm² (24 to 12 AWG) for both solid and stranded conductors. Under UL ratings, the component supports 12A at 250V (Group B) or 10A at 300V (Group D).
Mechanically, the header has a pitch of 5.08mm and a width of 40.64mm. It accommodates panel thicknesses from 0.5 to 4.0mm. The housing is made of polyamide (PA) with a flammability rating of UL 94 V2. Contact surfaces are tin-plated. The insulating material group is I per DIN VDE.
Compliance data includes RoHS3, REACH unaffected, and MSL 1 (unlimited) status, though these are unverified. The part is manufactured in Germany and sold in a packing unit of 1 piece.
The header has 4 positions.
The pitch is 5.08mm (0.200 inches).
The nominal current rating is 12A per IEC, and UL Group B rating is 12A at 250V. UL Group D rating is 10A at 300V.
The rated voltage is 320V (IEC III/2) and 630V (IEC II/2). UL rating is 300V (Group D) or 250V (Group B).
It uses a screw mount front flange, requiring two M3 x 10 screws for direct panel mounting.
It accepts solid and stranded conductors from 24 to 12 AWG (0.2 to 2.5 mm²).
The housing is made of polyamide (PA) with a UL 94 V2 flammability rating.
