| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
272 pcs
|
272 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
272 pcs
|
272 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connection Method | |
| Contact Surface | |
| Country of Origin | |
| Current | |
| Current Rating | |
| Features | |
| Front Panel Wire Connection | |
| Lead Spacing | |
| Number of Levels | |
| Number of Positions | |
| Panel Mount Type | |
| Panel Thickness | |
| Pitch | |
| Positions Per Level | |
| Rear Panel Wire Connection | |
| SVHC Present | |
| Standard Package Quantity | |
| Standards | |
| Voltage | |
| Voltage Rating | |
| Weight | |
| Width |

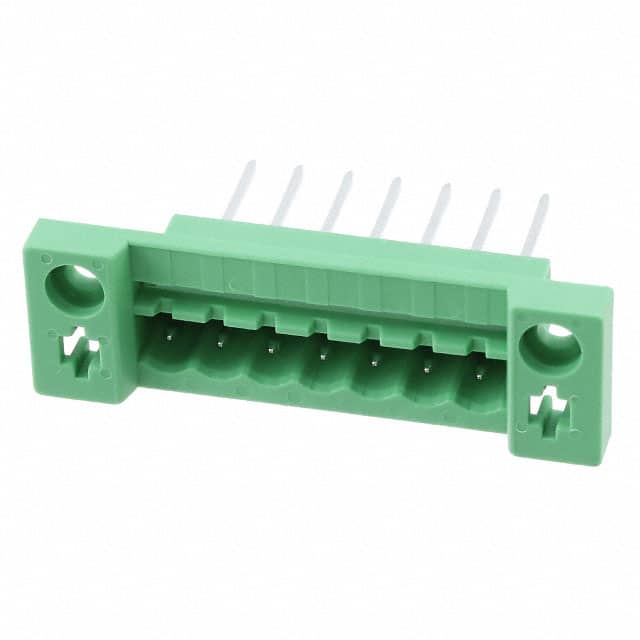

The Phoenix Contact 0707934 is a printed-circuit board connector header from the DFK-MSTB 2,5 series. It features 7 positions in a single level with a 5.08 mm pitch, designed for panel mount applications using screw mount with front flange. The header accepts male pins and provides solder/slip-on connection on the rear panel side, accommodating panel thicknesses from 0.020 to 0.157 inches.
Electrically, the header is rated for a nominal current of 12 A per EN-VDE standards and a rated voltage of 320 V (III/3). The contact surface is plated with tin for reliable conductivity. The housing is green and the component includes a lock opening feature for secure mating.
The part is certified to EN-VDE and is cULus Recognized, with a country of origin of Germany. Each unit weighs 7.9 g and is packaged individually. Key commercial data includes a customs tariff number of 85366990.
The part number is 0707934.
It has 7 positions.
The pitch is 5.08 mm.
Nominal current is 12 A and rated voltage is 320 V (III/3) per EN-VDE.
It is a panel mount with screw mount front flange.
The rear panel uses solder/slip-on connection.
It meets EN-VDE and is cULus Recognized.
