| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
40 pcs
|
40 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Current | |
| Current Rating | |
| Features | |
| Front Panel Wire Connection | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Panel Mount Type | |
| Panel Thickness | |
| Pitch | |
| Positions Per Level | |
| Rear Panel Wire Connection | |
| Termination Style | |
| Voltage | |
| Voltage Rating | |
| Width |

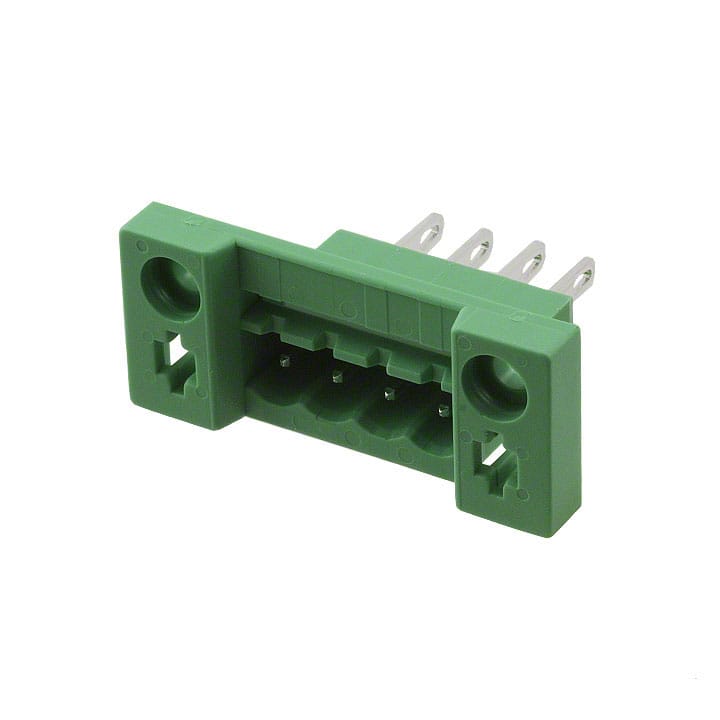

This is a terminal block header from Phoenix Contact, part number 0707264. It has 4 positions arranged in a single level with a pitch of 5.08mm. The header is designed for panel mount applications using a screw mount front flange.
Electrical ratings include a current rating of 15A and voltage rating of 300V. The front panel wire connection uses a header with male pins, while the rear panel wire connection offers quick connect (0.110" or 2.80mm) and solder eyelet options. The panel thickness range is 0.020" to 0.157" (0.5 to 4.0mm).
The component is green in color and features a lock opening for secure mating. It is RoHS3 compliant and has an MSL of 1 (unlimited). The mounting type is screw mount front flange.
4 positions.
5.08mm (0.200").
15A.
300V.
Screw mount front flange.
Green.
Quick connect (0.110") and solder eyelet.
