| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
63 pcs
|
63 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
63 pcs
|
63 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AWG Max | |
| AWG Min | |
| Color | |
| Conductor Cross Section Flexible Max | |
| Conductor Cross Section Flexible Min | |
| Conductor Cross Section Solid Max | |
| Conductor Cross Section Solid Min | |
| Connection Method | |
| Current | |
| Current (CSA) | |
| Current (Nominal) | |
| Dimension a | |
| Features | |
| Flammability Rating | |
| Front Panel Wire Connection | |
| Insulating Material | |
| Insulating Material Group | |
| Lead Spacing | |
| Maximum Load Current | |
| Mounting | |
| Mounting Type | |
| Nominal Cross Section | |
| Number of Levels | |
| Packing Unit | |
| Panel Mount Type | |
| Panel Thickness | |
| Pitch | |
| Positions Per Level | |
| Rated Surge Voltage (II/2) | |
| Rated Surge Voltage (III/2) | |
| Rated Surge Voltage (III/3) | |
| Rated Voltage (II/2) | |
| Rated Voltage (III/2) | |
| Rated Voltage (III/3) | |
| Rear Panel Wire Connection | |
| Termination Style | |
| Voltage | |
| Voltage - Input | |
| Weight | |
| Width |

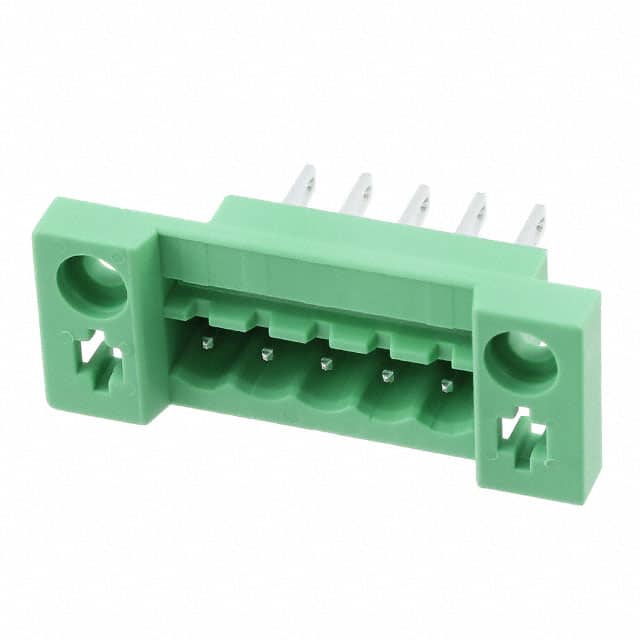

The Phoenix Contact 0707138 is a base strip header from the DFK-MSTB 2,5/..-G series, designed for panel mounting. It provides a plug-in connection for corresponding MSTB 2,5 or FKC 2,5 plugs on the outside and solder or 2.8 mm slip-on connection on the inside.
Rated for a nominal current of 12 A (per EN-VDE) and rated voltage of 320 V (III/2) or 630 V (II/2), with surge voltage ratings of 4 kV. The conductor cross-section ranges from 0.2 mm² to 2.5 mm² solid or flexible, accommodating AWG 24 to 12.
The header has 5 positions with a 5 mm pitch. It is a screw mount panel mount type with a front flange, suitable for panel thicknesses from 0.5 to 4.0 mm. The housing is made of green polyamide (PA) with UL 94 V2 flammability rating. Dimensions: width 45 mm, dimension a 20 mm. Weight 6.1 g.
Connection method: solder/slip-on. The part is RoHS3 compliant, REACH unaffected, and has MSL 1. Packing unit is 1 piece.
It has 5 positions.
The pitch is 5.00 mm.
The nominal current is 12 A per EN-VDE, with a CSA rating of 15 A.
Rated voltage is 320 V (III/2) and 630 V (II/2).
It is screw mount - front flange, direct mounting.
It accepts solid or flexible conductors from 0.2 mm² to 2.5 mm², AWG 24 to 12.
The housing is green.
