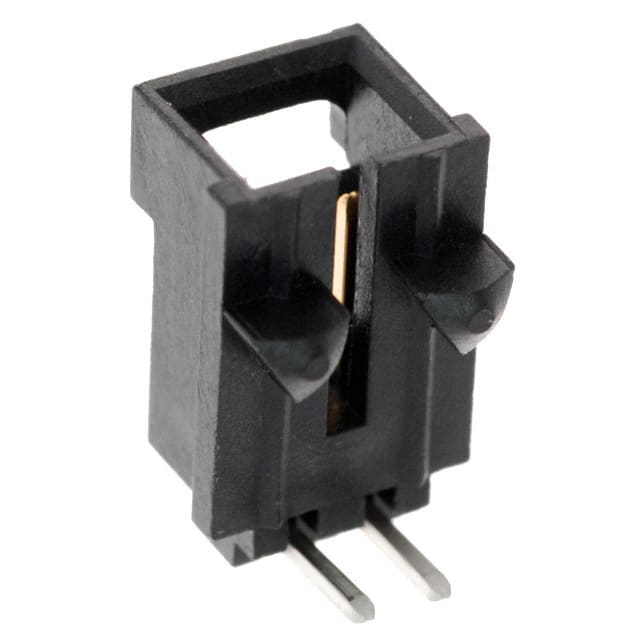

The Molex 0705550036 is a 2 position single row right angle shrouded header designed for board-to-cable/wire applications. It features a 2.54mm (0.100") pitch and a through hole right angle mounting style with solder termination. The header is fully shrouded with a 4-wall design and includes a latch holder fastening system for secure mating.
The contacts are made of phosphor bronze with a tin finish of 15.0µin (0.38µm) and have a square contact shape. The contact length is 6.10mm (0.240"). The insulator is black polyester, glass filled with a flammability rating of UL94 V-0 and an insulation height of 5.45mm (0.215").
This header is rated for 250V and has an operating temperature range of -40°C to 105°C. It includes a board guide feature for alignment during assembly. All 2 positions are loaded.
The pitch is 2.54mm (0.100").
It has 2 positions in a single row, all loaded.
The voltage rating is 250V.
It is through hole, right angle mounting.
Yes, it is fully shrouded with a 4-wall design and includes a latch holder.
The operating temperature range is -40°C to 105°C.
The contacts have a tin finish of 15.0µin (0.38µm).
