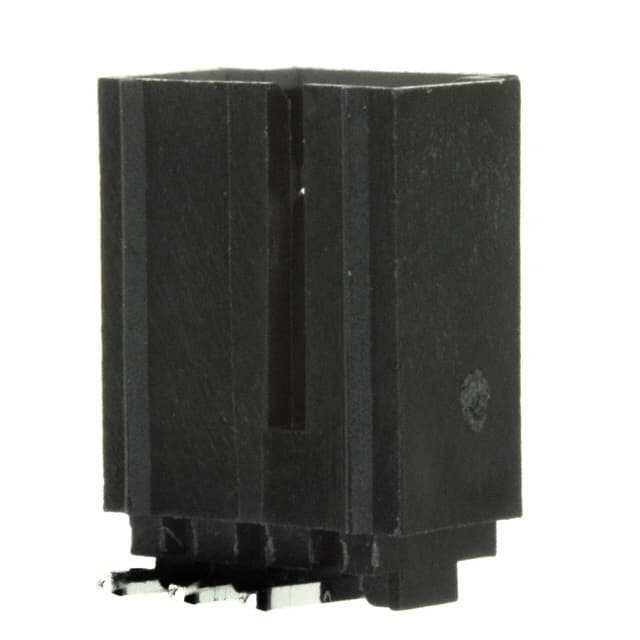

The Molex 0705530037 is a 3 position single row shrouded header designed for board-to-cable/wire applications. It features a 2.54mm (0.100") pitch and a through hole right angle mounting style, making it suitable for compact PCB layouts where a low-profile right-angle connection is required.
The header is fully shrouded with a 4-wall design and includes a latch holder fastening type for secure mating. The contacts are made of phosphor bronze with a tin finish (150.0µin thickness) and have a square shape. The insulator is black polyester, glass filled, with a UL94 V-0 flammability rating.
Electrical rating is 250V, and the operating temperature range spans -40°C to 105°C. Termination is via solder. This connector is RoHS3 compliant and REACH unaffected per unverified database records.
The pitch is 2.54mm (0.100").
It has 3 positions in a single row.
Through hole, right angle.
250V.
-40°C to 105°C.
Tin, 150.0µin (3.81µm) thickness.
