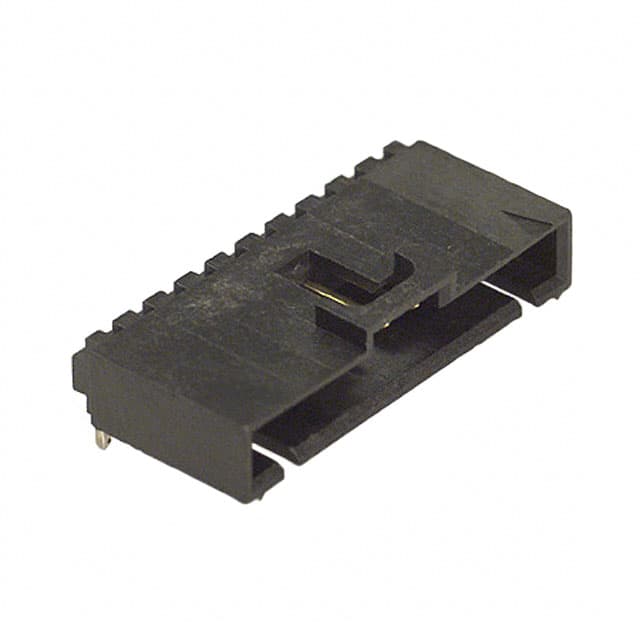

The Molex 0705530009 is a 10-position, single-row header designed for board-to-cable/wire applications. It features a right-angle through-hole mounting style with a 2.54mm (0.100") pitch, making it suitable for compact PCB designs. The connector is shrouded with a 4-wall design and includes a latch holder for secure mating.
The header uses male pin contacts made of phosphor bronze with a tin finish and a thickness of 15.0µin (0.38µm). The insulation is black polyester, glass filled, with a flammability rating of UL94 V-0. The contact length is 6.10mm (0.240") and the insulation height is 5.45mm (0.215").
Electrically, it is rated for 250V and has an operating temperature range of -40°C to 105°C. The termination is solder. This connector is suitable for applications where a reliable, latchable connection between a PCB and a cable or wire harness is required.
10 positions, loaded all.
2.54mm (0.100").
250V.
Through hole, right angle.
-40°C to 105°C.
Phosphor bronze with tin finish, 15.0µin (0.38µm) thickness.
Polyester, glass filled, black, rated UL94 V-0.
