| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

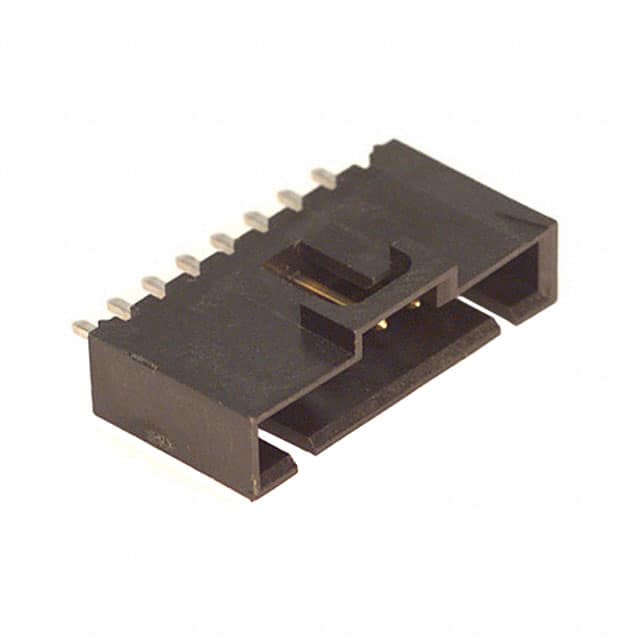

The Molex 0705430007 is an 8 position single row shrouded header designed for board-to-cable/wire applications. It features a 2.54mm pitch and through hole solder termination. The header is fully shrouded with a 4-wall design and includes a latch holder for secure mating. Contacts are made of phosphor bronze with a tin plating of 15.0µin (0.38µm). The insulator is black glass-filled polyester with a UL94 V-0 flammability rating. Operating temperature range is -40°C to 105°C. Voltage rating is 250V.
2.54mm (0.100")
8 positions in a single row.
Through hole with solder termination.
250V
-40°C to 105°C
Phosphor bronze with 15.0µin (0.38µm) tin plating.
Yes, it is a shrouded - 4 wall design with a latch holder.
