| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,500 pcs
|
1500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

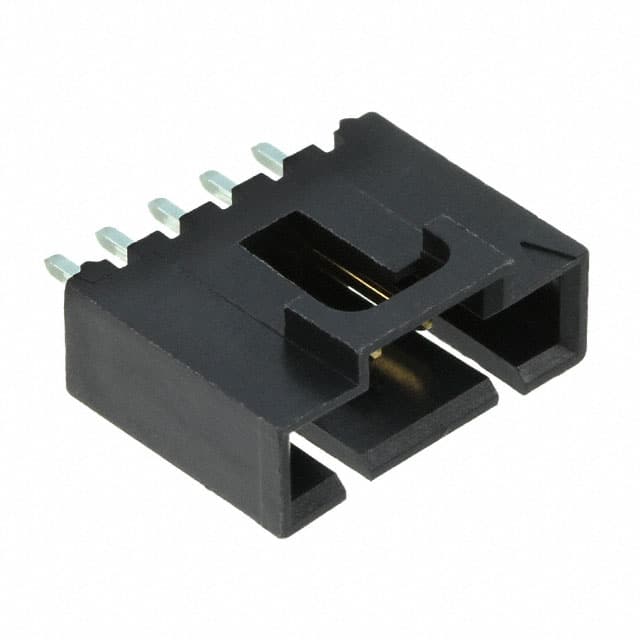

The Molex 0705430004 is a 5 position single row shrouded male pin header designed for board-to-cable/wire applications. It features a 2.54mm pitch and through hole mounting with solder termination, ensuring reliable connections in a variety of electronic assemblies.
The connector is fully shrouded with a 4-wall design and includes a latch holder fastening type for secure mating. The contacts are made of phosphor bronze with a tin finish (15.0µin thickness) and have a square shape. The insulator is black polyester, glass filled, with a UL94 V-0 flammability rating.
This header is rated for 250V and operates over a temperature range of -40°C to 105°C. The overall contact length is 11.94mm with a contact length of 6.10mm and an insulation height of 11.80mm.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.58 | $1.58 |
| 35+ | $1.23 | $1.23 |
| 105+ | $1.14 | $1.14 |
| 525+ | $1.02 | $1.02 |
| 1,015+ | $0.97 | $0.97 |
| 5,005+ | $0.87 | $0.87 |
| 10,010+ | $0.83 | $0.83 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 5 positions in a single row.
The pitch is 2.54mm (0.100").
It is rated for 250V.
It is a through hole mounting type with solder termination.
Yes, it is a shrouded header with a 4-wall design and a latch holder fastening type.
