| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,496 pcs
|
2496 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

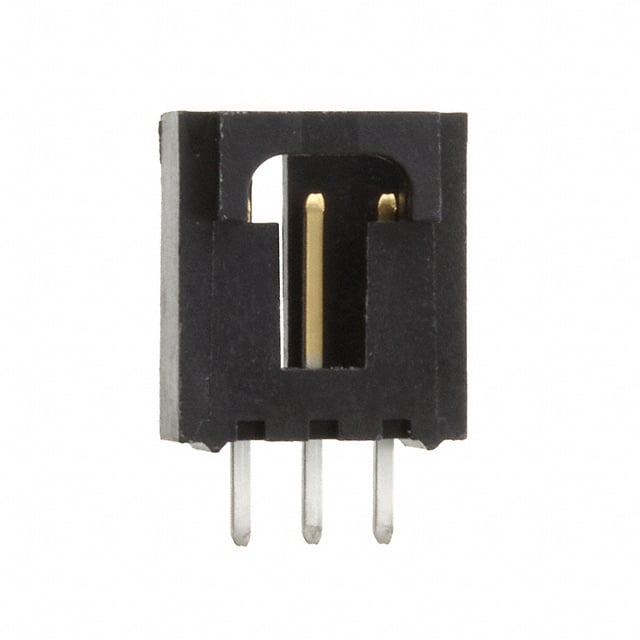

The Molex 0705430002 is a 3-position, single-row, 2.54mm pitch shrouded header designed for board-to-cable/wire applications. It features a 4-wall shrouded design with a latch holder for secure mating. The connector has through hole solder termination and a square pin contact shape. Contacts are made of phosphor bronze with a tin finish (15.0µin). The insulator is black glass-filled polyester with UL94 V-0 flammability rating. Rated for 250V and operating temperature range -40°C to 105°C. Overall contact length is 11.94mm, insulation height is 11.80mm. Suitable for various industrial and consumer electronics requiring reliable wire-to-board connections.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.97 | $0.97 |
| 52+ | $0.73 | $0.73 |
| 104+ | $0.70 | $0.70 |
| 520+ | $0.62 | $0.62 |
| 1,040+ | $0.59 | $0.59 |
| 5,044+ | $0.53 | $0.53 |
| 10,036+ | $0.50 | $0.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3 positions.
2.54mm (0.100")
250V.
Through hole.
Phosphor bronze with tin finish (15.0µin).
-40°C to 105°C.
Polyester, glass filled, UL94 V-0.
