| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
18,341 pcs
|
18341 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
579 pcs
|
579 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request | |
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

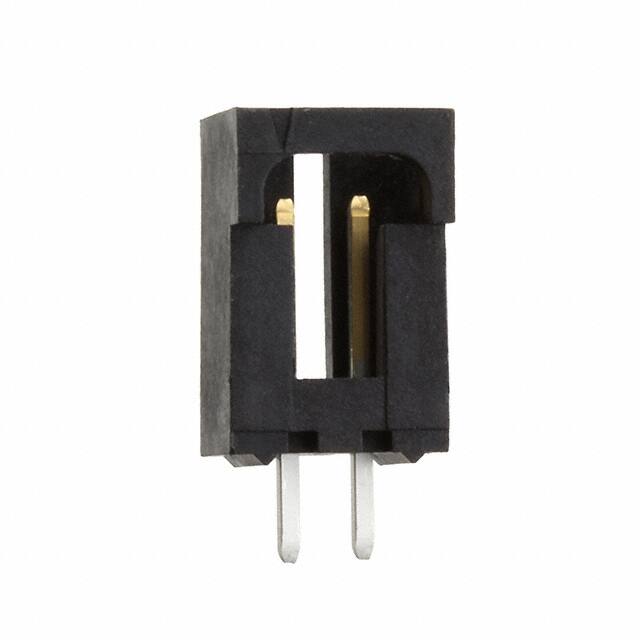

The Molex 0705430001 is a 2 position, single row, through hole shrouded header designed for board to cable/wire interconnections. It features a 2.54mm pitch with square male pin contacts made of phosphor bronze and a tin finish. The header is shrouded on all four walls and includes a latch holder for secure mating.
The insulator is constructed from black glass filled polyester with a UL94 V-0 flammability rating. The overall contact length measures 11.94mm, including a contact length of 6.10mm. This header is rated for 250V and supports an operating temperature range of -40°C through 105°C. Solder termination allows for reliable through hole mounting on PCBs.
2.54mm
2 positions in a single row
250V
Through hole with solder termination
-40°C to 105°C
Yes, it has a 4-wall shrouding with a latch holder
Tin, 15.0µin (0.38µm)
