Mfr Part #:

0702471454

Name: 0702471454
Brand: Molex
SKU: 0702471454

Mfr Name: Molex

Description:

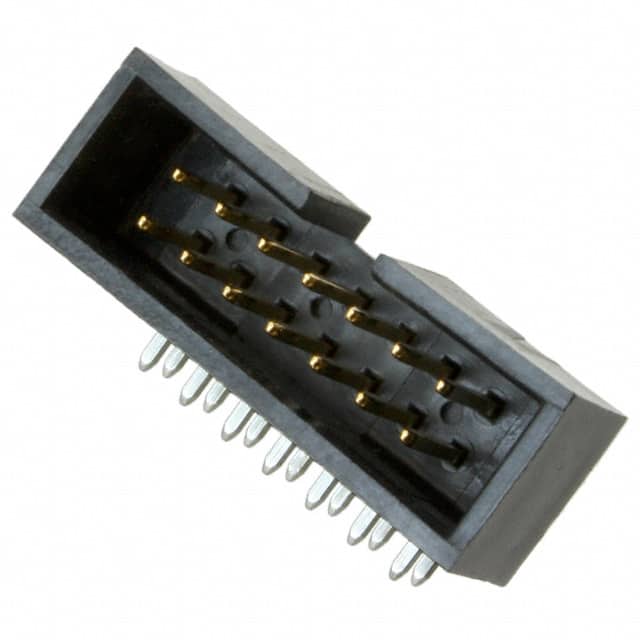

CONN HEADER R/A 14POS 2.54MM

Stock on Request

0702471454 Description

Short technical summary and product information.

CONN HEADER R/A 14POS 2.54MM

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

0702471404

Molex

0702471404

Category	Headers, Male Pins
Manufacturer Name	Molex
Connector Type	Header
Contact Finish	Tin
Contact Finish Thickness	5.00碌in (0.127碌m)
Contact Length	0.240" (6.10mm)
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Black
Insulation Height	0.350" (8.89mm)
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	14
Number of Positions Loaded	All
Number of Rows	2
Pitch	0.100" (2.54mm)
Row Spacing	0.100" (2.54mm)
Shrouding	Shrouded - 4 Wall
Style	Board to Board or Cable
Termination	Solder
