Mfr Part #:

0702464001

Mfr Name: Molex

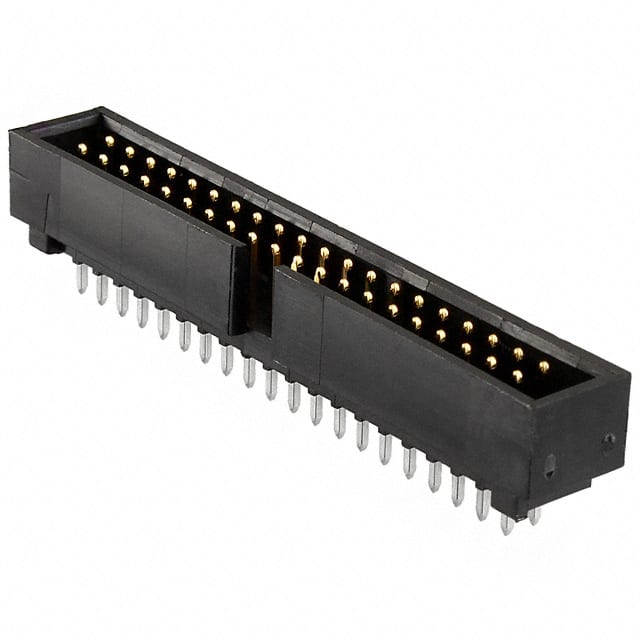

Molex 0702464001 is a 40-position, 2-row, shrouded header with male square pins arranged on a 2.54mm pitch. It is designed for board-to-cable/wire applications and features through hole solder termination.

✓ Total Stock: 74 pcs

$ Price Range: $2.99 - $4.94

0702464001 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Husky International Electronic ✓ Non-Authorised Inventory information	74 pcs On Request	74 pcs	On Request	1	On Request	On Request	N/A	On Request	On Request

0702464001 Description

Short technical summary and product information.

The Molex 0702464001 is a 40-position, 2-row shrouded header connector featuring male square pins. The connector uses a 2.54mm (0.100") pitch and the same 2.54mm row spacing, making it compatible with standard 0.100" ribbon cable IDC connectors and common prototyping grids.

Mechanically, the part is shrouded on all four walls, providing pin protection and polarization. A keying slot is included to prevent mismating. The header uses a push-pull fastening type and is intended for board-to-cable/wire connections. Contacts are made of phosphor bronze with a tin finish (0.38µm thickness) and have a contact length of 6.10mm, with an overall contact length of 12.70mm.

The insulator is black polybutylene terephthalate (PBT) filled with glass, rated UL94 V-0 for flammability. The insulation height is 9.27mm. Mounting is through hole with solder termination. All 40 positions are loaded.

0702464001 Quick Information

Product Type: Shrouded Header

Series: 70246

Canonical Name: Molex 0702464001 Shrouded Header, Male Pins, Through Hole, 40 Positions, 2.54mm Pitch

Subcategory: Male Pins

0702464001 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): MSL 1 - Unlimited

REACH Status: REACH Unaffected

0702464001 Estimated Pricing

Qty	Low	High
1+	$4.94	$4.94
10+	$4.20	$4.20
400+	$3.23	$3.23
800+	$3.08	$3.08
1,200+	$2.99	$2.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

0702464001 Features

40-position, 2-row shrouded header.
Through hole mounting with solder termination.
2.54mm pitch and 2.54mm row spacing.
Tin-plated phosphor bronze square pins.
Insulator rated UL94 V-0 flame retardant.

0702464001 Applications

Used in board-to-cable/wire interconnect assemblies.
Suitable for industrial control and automation equipment.
Common in test and measurement instrumentation.
Applied in consumer electronics and data communication devices.

0702464001 FAQs

3 frequently asked questions generated from this part’s specifications.

How many positions does this Molex header have?

This header has 40 positions arranged in 2 rows, with all positions loaded.

What is the pitch of the 0702464001 header?

The pitch is 2.54mm (0.100") with a row spacing of 2.54mm (0.100").

What mounting type does this part use?

It uses through hole mounting with solder termination.

Category	Headers, Male Pins
Manufacturer Name	Molex
Connector Type	Header
Contact Finish	Tin
Contact Finish Thickness	0.38µm (15.0µin)
Contact Length	6.10mm (0.240")
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Black
Insulation Height	9.27mm (0.365")
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Lead Spacing	2.54mm (0.100")
Lead Style	Solder
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	40
Number of Positions Loaded	All
Number of Rows	2
Overall Contact Length	12.70mm (0.500")
Pitch	2.54mm (0.100")
Row Spacing	2.54mm (0.100")
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
