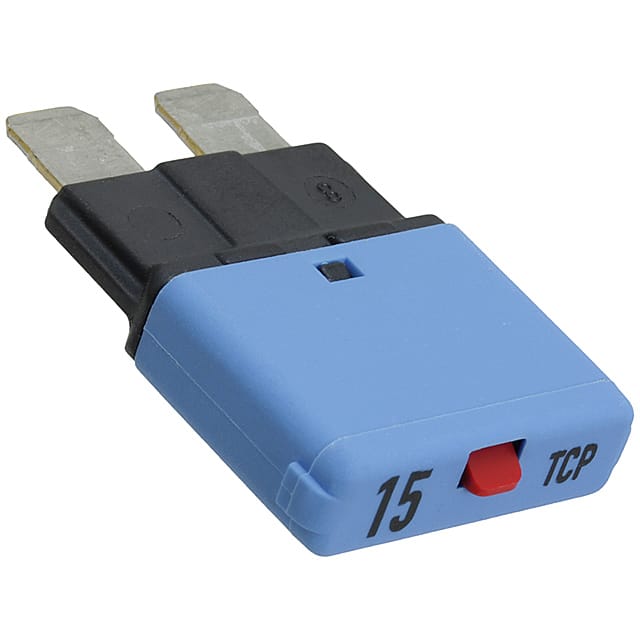

The Phoenix Contact 0700015 is a thermal circuit breaker from the CLIPLINE series, specifically the TCP.../DC32V sub-series. It is designed for protecting 12V and 24V on-board systems and devices in vehicles and low-voltage systems, such as solar chargers. This very compact breaker features a 15A nominal current rating and a 32V DC nominal voltage.
Unlike some other models, the TCP.../DC32V series does not offer manual current circuit switching but can be switched back on after tripping, increasing device availability and eliminating the need for replacement fuses. Its clear color coding helps avoid errors from using the wrong fuse. The breaker fits standard fuse holders for flat-type fuse inserts according to ISO 8820-3 (DIN 72581-3) and can be plugged onto UK 6-FSI/C... (screw connection) or ST 4-FSI/C... (spring-cage connection) fuse base terminal blocks. Potential distribution is easily managed with bridges for both terminal types.
Key technical data includes a voltage drop of less than 150 mV at nominal current, an operating ambient temperature range of -30°C to +60°C, and a weight of approximately 5g. The interrupting capacity is rated for at least 3 interruptions of 150A or 1 interruption of 2000A. The breaker has a service life of 300 cycles at or below 50A and offers an IP30 degree of protection for the operating field.
The nominal voltage rating is 32 V DC.
The nominal current rating is 15 A.
The operating ambient temperature range is -30°C to +60°C.
The voltage drop at nominal current is less than 150 mV.
The limit short circuit interruption capacity is at least 3 interruptions of 150 A or 1 interruption of 2000 A.
It is a 1-pole circuit breaker.
