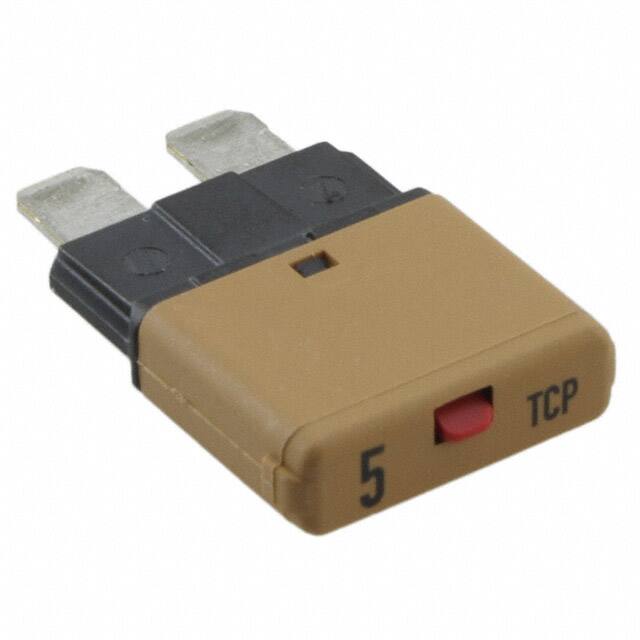

The Phoenix Contact 0700005 is a compact thermal circuit breaker from the CLIPLINE series, specifically the TCP.../DC32V sub-series. It is designed to protect 12V and 24V on-board systems and devices in vehicles, boats, and solar charging systems.
This circuit breaker features a resettable thermal mechanism, meaning it can be switched back on after tripping, increasing device availability and eliminating the need for replacement fuses. It fits into fuse holders designed for flat-type fuse inserts according to ISO 8820-3 (DIN 72581-3) and can be plugged onto UK 6-FSI/C... (screw connection) or ST 4-FSI/C... (spring-cage connection) base terminal blocks.
Key electrical specifications include a nominal voltage of 32V DC and a nominal current of 5A. The voltage drop at nominal current is less than 150mV. It operates within an ambient temperature range of -30°C to +60°C. The interrupting capacity is rated for at least 3 interruptions of 150A or 1 interruption of 2000A. The device has a service life of 300 cycles at or below 50A. It offers an IP30 degree of protection for the operating field and IP00 for the connection area.
The clear color coding of the TCP.../DC32V series helps avoid errors from using the wrong fuse type. Its compact size and resettable function make it a practical solution for applications requiring reliable circuit protection.
The nominal voltage rating is 32 V DC.
The nominal current rating is 5 A.
The operating ambient temperature range is -30°C to +60°C.
The voltage drop at nominal current is less than 150 mV.
It has a limit short circuit interruption capacity of at least 3 interruptions of 150 A or 1 interruption of 2000 A.
The service life is 300 cycles at or below 50 A.
The degree of protection for the operating field is IP30, and for the connection area it is IP00.
